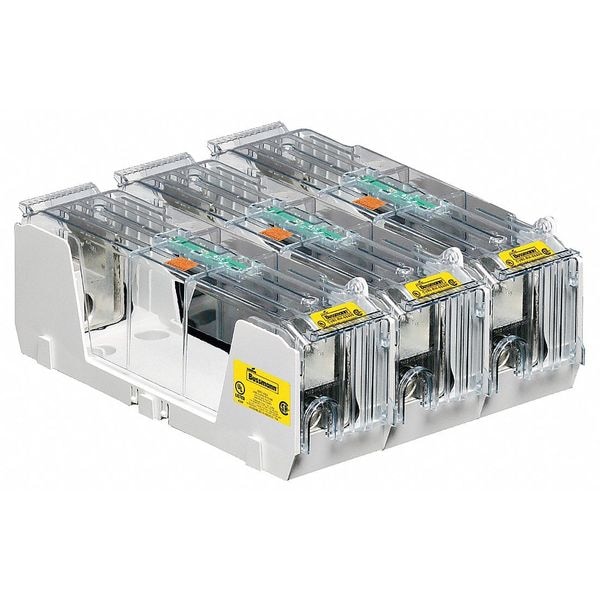

Open Fuse Block, H; K5 UL Class, 600V AC/DC Volt Rating, 3 Poles, Box Lug
Mfr # HM60400-3CR
Zoro # G2590519
product price:Â $1,126.99
/ea
Free Shipping & Returns
Key Features
UL Class
H; K5
Series
HM
Number of Poles
3
Amp Range
225 to 400A
Connector Type
Box Lug
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
HM60400-3CR
Zoro #
G2590519
UPC #
051712386968
Country of Origin
Mexico
Dimensions
Width
10.91 in
Height
4.80 in
Length
12-1/2 in
For Fuse Size
11-5/8 in L x 2-19/32 in dia
Wire Size - Maximum
600 kcmil
Overall Length
12.5 in
Overall Height
4.8 in
For Fuse Length
11 5/8 in
Wire Size - Minimum
4 AWG
Overall Width
10.91 in
For Fuse Diameter
2 11/32 in
Wire Size
4 AWG to 600 MCM
Description
Fuse Block, Fits Fuse Type Class H, Class K5, Fuse UL Class H, K5, 201 to 400 A, Number of Poles 3, 600V AC, For Fuse Size 11 5/8 in L x 2 19/32 in dia, Compatible Fuse Series NLS, NOS, OTS, RES, RFS, RLS, Series HM, Non-Indicating, Non-Rejection, Fuse Block Design Open, Wire Range 4 AWG to 600 MCM, Mounting Style Bolt-Down, Body Material Thermoplastic, Connector Type Box Lug, Height 4.8 in, Width 10.91 in, Length 12.5 in, Spring Reinforced Clip Yes, Standards CSA Certified, UL Listed
