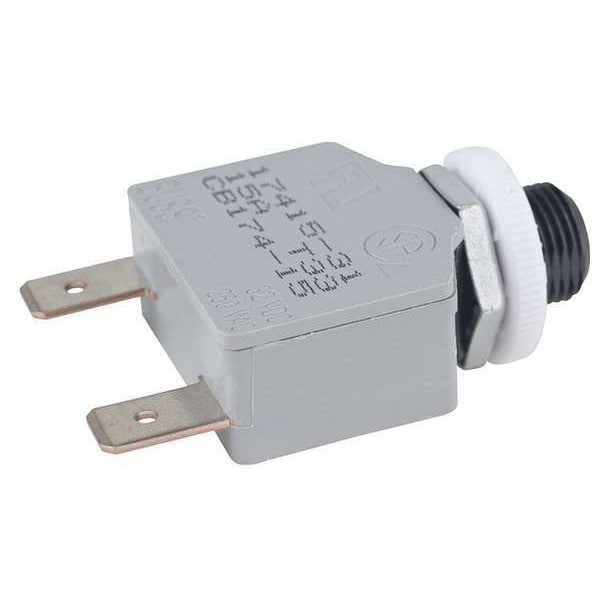

Panel Mount Circuit Breaker, 15 A, 32V DC
Mfr # CB174-15
Zoro # G2029027
product price: $10.49
/eaKey Features
Actuator Color
White
Terminal Connection
1/4 in Quick Connect
Switch Type
Panel
DC Voltage Rating
32V DC
Standards
CSA 22.2 No. 235, SAE J1171, SAE J553, UL 1077
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CB174-15
Zoro #
G2029027
UPC #
051712593380
Country of Origin
China
Dimensions
Width
1.11 in
Depth
0.48 in
Length
2.21 in
Panel Cutout Size
0.375 in dia
Max. Panel Thickness
0.375 in
Mounting Hole Thread Size
3/8"-27
Details
Item
Panel Mount Circuit Breaker
Actuator Color
White
Terminal Connection
1/4 in Quick Connect
Switch Type
Panel
DC Voltage Rating
32V DC
Amps
15 A
Standards
CSA 22.2 No. 235, SAE J1171, SAE J553, UL 1077
Circuit Breaker Type
Manual Reset
AC Voltage Rating
250V AC
Number of Poles
1
Curve Type
Medium
Phase
Single
Circuit Breaker Actuator
Push Button
Max. AIR Rating
1kA at 250V AC
Min. Operating Temp.
Not Rated
Max. Operating Temp.
Not Rated
Description
Panel Mount Circuit Breaker, Amps 15 A, AC Voltage Rating 250V AC, Terminal Connection 1/4 in Quick Connect, DC Voltage Rating 32V DC, Manual Reset, Number of Poles 1, Circuit Breaker Actuator Push Button, Max. AIR Rating 1kA at 250V AC, Curve Type Medium, Phase Single, Mounting Type Panel, Actuator Color White, Panel Cutout Size 0.375 in dia, Max. Panel Thickness 0.375 in, Mounting Hole Thread Size 3/8 In.-27, Length 2.21 in, Width 1.11 in, Depth 0.48 in, Min. Operating Temp. Not Rated
