Shop EATON BUSSMANN

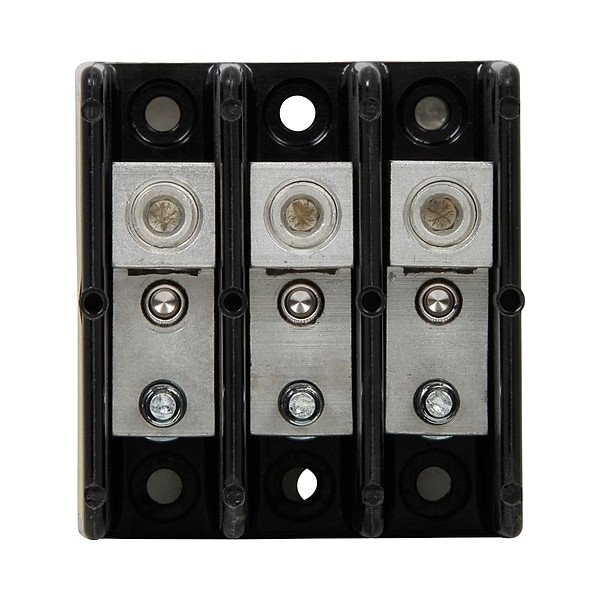

PowerDistributionBlock, 175A, 600V, 3Poles

  • Mfr # 16280-3

  • Zoro # G521692569

product price:
$
138.99
/ea
Free Shipping & Returns

Key Features

Standards
RoHS
For Conductor Material
Aluminum, Copper
Housing Material
Thermoplastic
Primary Wire Range
1 to 2/0 AWG, 14 to 10 AWG Cu, 3 to 2 AWG, 8 to 4 AWG
For Line Copper Wire Size - Minimum
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16280-3
Zoro #
G521692569
UPC #
051712181884
Country of Origin
Mexico

Dimensions

For Line Copper Wire Size - Minimum
14 AWG
Overall Depth
1.69 in
Wire Rope Length
2.84 in
Overall Width
2.62 in
For Line Aluminum Wire Size - Minimum
3 AWG
For Line Copper Wire Size - Maximum
2/0 AWG
For Line Aluminum Wire Size - Maximum
2/0 AWG
Load Side Stud Size
1/4-20 x 3/4 in
Overall Length
2.84 in
Length
2.84 in

Details

Standards
RoHS
For Conductor Material
Aluminum, Copper
Housing Material
Thermoplastic
Primary Wire Range
1 to 2/0 AWG, 14 to 10 AWG Cu, 3 to 2 AWG, 8 to 4 AWG
Maximum Current - Copper Conductor
175 A
Load Connections/Pole
1
Special Features
Higher Temperature Rated Conductors Permitted with Appropriate Derating
UL 94 Flammability Rating
V-0
Housing Color
Black
Number of Poles
3
Maximum Current - Aluminum Conductor
175 A
Maximum Voltage
600 V
Item
Power Distribution Block
Line Connections/Pole
2
Terminal Material
Aluminum
Load Side Connection Type
Stud
Line Side Connection Type
Lug
Power Distribution Block Design
Open
Series
162

Description

POWER DISTRIBUTION BLOCK
