Shop EATON BUSSMANN

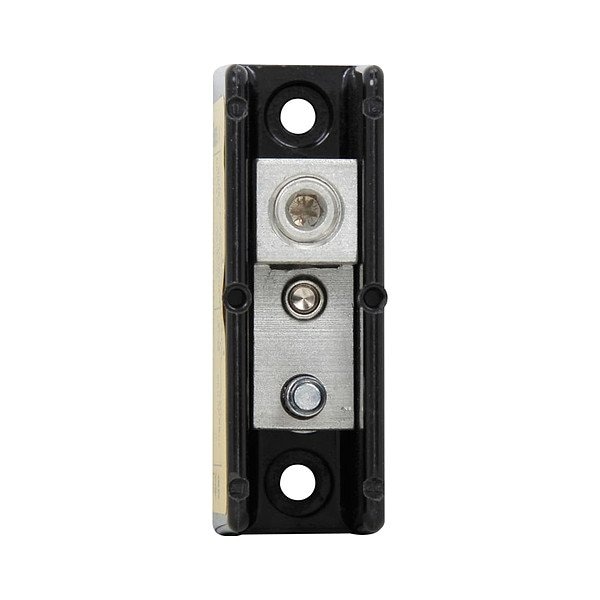

PowerDistributionBlock, 175A, 600V, 1Poles

  • Mfr # 16280-1
  • Zoro # G321692639
product price:
$
65.59
/ea

Key Features

Load Connections/Pole
1
Line Side Connection Type
Lug
Maximum Current - Aluminum Conductor
175 A
For Conductor Material
Aluminum, Copper
Housing Color
Black
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16280-1
Zoro #
G321692639
UPC #
051712500111
Country of Origin
Mexico

Dimensions

For Line Aluminum Wire Size - Minimum
3 AWG
Load Side Stud Size
1/4-20 x 3/4 in
Overall Width
1.5 in
For Line Aluminum Wire Size - Maximum
2/0 AWG
For Line Copper Wire Size - Minimum
14 AWG
Wire Rope Length
2.83 in
Overall Depth
1.75 in
For Line Copper Wire Size - Maximum
2/0 AWG
Overall Length
2.83 in
Length
2.83 in

Details

Load Connections/Pole
1
Line Side Connection Type
Lug
Maximum Current - Aluminum Conductor
175 A
For Conductor Material
Aluminum, Copper
Housing Color
Black
Number of Poles
1
Maximum Voltage
600 V
Load Side Connection Type
Stud
Special Features
Higher Temperature Rated Conductors Permitted with Appropriate Derating
Power Distribution Block Design
Open
UL 94 Flammability Rating
V-0
Terminal Material
Aluminum
Series
162
Standards
RoHS
Primary Wire Range
1 to 2/0 AWG, 14 to 10 AWG Cu, 3 to 2 AWG, 8 to 4 AWG
Line Connections/Pole
2
Housing Material
Thermoplastic
Maximum Current - Copper Conductor
175 A
Item
Power Distribution Block

Description

POWER DIST. BLOCK
