  11. Surge Arrester, 1 Phase, 120/240V, 1 Poles

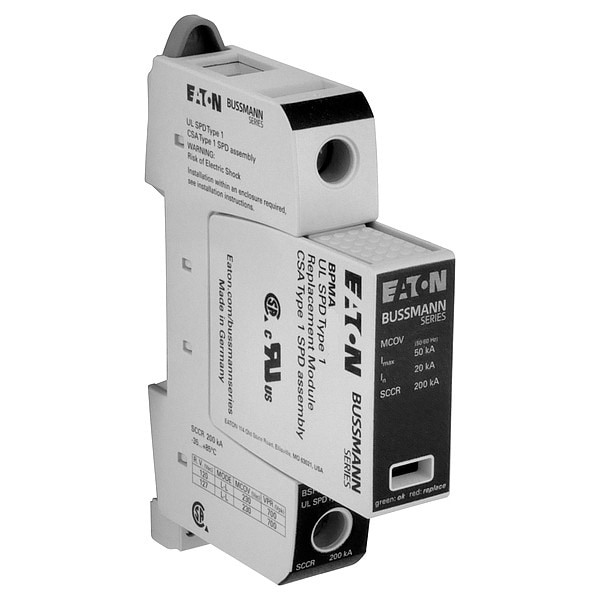

Eaton Bussmann Surge Arrester, 1 Phase, 120/240V, 1 Poles BSPMA1120S2GR - main

Surge Arrester, 1 Phase, 120/240V, 1 Poles

  • Mfr # BSPMA1120S2GR

  • Zoro # G201212575

product price: $341.99
/ea
Free Shipping & Returns

Key Features

Phase
1
Voltage
120/240V
Number of Poles
1
Voltage Protection Rating
1200V, 700V
Max. Surge Current per Mode
50 kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BSPMA1120S2GR
Zoro #
G201212575
UPC #
051712709026
Country of Origin
Germany

Dimensions

Length
0.71 in
Depth
3.54 in
Width
2.56 in

Details

Item
Surge Arrester
Phase
1
Voltage
120/240V
Number of Poles
1
Voltage Protection Rating
1200V, 700V
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Enclosure Material
Thermoplastic
Type
Surge arrestor
Application
Surge Protection
Surge Current
200 kA
Special Features
Technology type MOV
Indicator type
Remote contact
Operating voltage
600/1200
Frequency Rating
50/60 Hz
Mounting Method
35 mm DIN rail
Operating Temperature
-35 to 85 °C
Certifications
UL 94V0
Degree of protection
IP20
Includes Surge Counter
No
System Connection
Series
IP Rating
IP 20
Mounting Style
DIN Rail

Description

Single Phase,120V,1P
