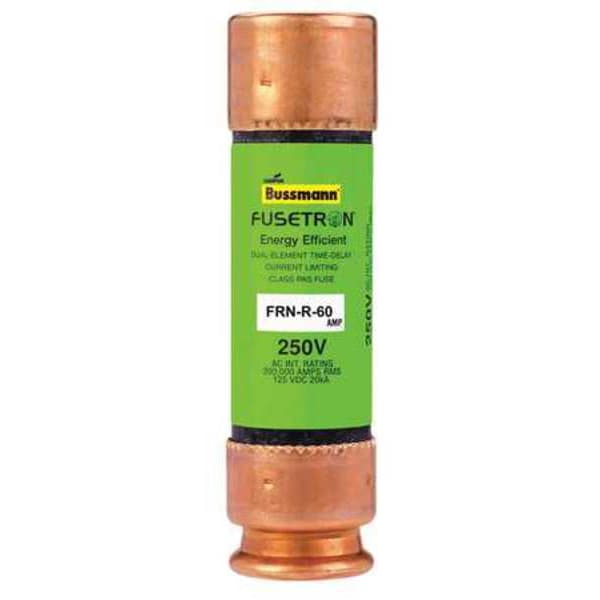

UL Class Fuse, RK5 Class, Time-Delay, 60A, 250V AC, Indicating

Mfr # FRN-R-60ID
Zoro # G0604204

CAD Available

17.85

Key Features

CAD Drawing

Class

RK5

Speed

Time-Delay

AC Voltage Rating

250V AC

DC Voltage Rating

125V DC

Visual Indication

Indicating

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: FRN-R-60ID
Zoro #: G0604204
UPC #: 051712204477
Country of Origin: Mexico

Dimensions

Length: 3 in
Diameter: 13/16 in
Overall Diameter: 13/16 in
Overall Length: 3 in
Wire Rope Length: 3 in

Details

Class: RK5
Series: FRN-R-ID
Speed: Time-Delay
Amps: 60A
AC Voltage Rating: 250V AC
DC Voltage Rating: 125V DC
Visual Indication: Indicating
Interrupt Rating: 200kA at 250V AC, 20kA at 125V DC
Body Style: Cylindrical
Body Material: Fiberglass
Equivalent Brand and Series: Bussmann FRN-R-ID, Littelfuse FLNR-ID, Mersen TR-RID
Equivalent Series: FLNR-ID, LRN-R-ID, TR-RID
Fits Fuse Block Style: Rejection
Compatible Fuse Block Series: HM600, R250
Item: UL Class Fuse
Element: Dual
Fuse Holder Code: K
Functionally Equal To: Littelfuse FLNR-ID, Mersen/Ferraz Shawmut TR-ID
Standards: CE, CSA Certification Class 1422-01, UL 248-12 Guide JDDZ
Weight: 0.5 lb
Connection Type: Ferrule End x Ferrule End
Interrupt Rating - AC: 200 kA
Interrupt Rating - DC: 20 kA
Current: 60 A
CAD Available: Yes

Description

Fuse, 60 A, 250 V AC, 125 V DC, Class RK5, FRN-R-ID Series, Indicating, Time-Delay, Body Style Cylindrical, Fits Fuse Block Style Rejection, Interrupt Rating 200kA at 250V AC, 20kA at 125V DC, Fuse Size 3 in L x 13/16 in dia, Length 3 in, Diameter 13/16 in, Equivalent Brand and Series Bussmann FRN-R-ID, Littelfuse FLNR-ID, Mersen TR-RID, Equivalent Series FLNR-ID, LRN-R-ID, TR-RID, Compatible Fuse Block Series HM250, RM250, Body Material Fiberglass, Dual Element
