CAD Viewer & Download Files

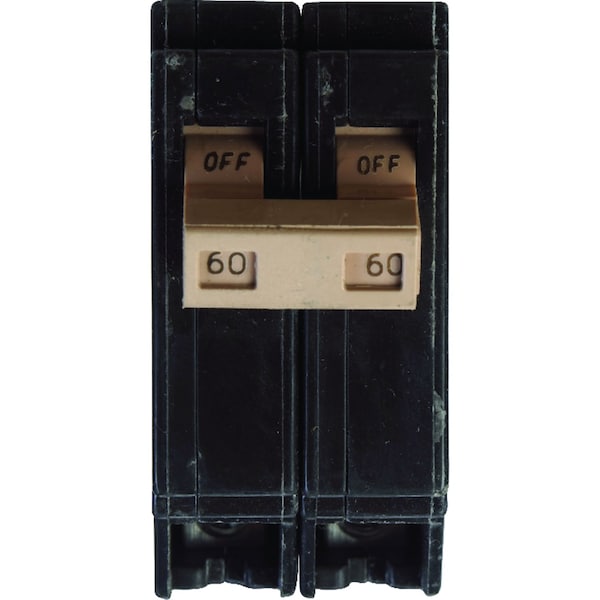

Circuit Breaker, CH Series, 60A, 2 Pole, 120/240V AC, 10kA
Mfr # CHF260
Zoro # G3209758
CAD Available
product price: $36.65
/eaKey Features
CAD Drawing
Series
CH
Amps
60A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CHF260
Zoro #
G3209758
UPC #
7.8669E+11
Country of Origin
United States
Dimensions
Width
1-1/2 in
Depth
3 in
Height
3-1/2 in
Max. Wire Size
2 AWG (Cu/Al)
Min. Wire Size
14 AWG (Cu/Al)
Wire Size
#14-2 AWG Cu/Al
Details
Item
Circuit Breaker
Series
CH
Amps
60A
Number of Poles
2
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
Trip Type
Common
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
For Use With
Type CH Loadcenters
Standards
UL 489
CAD Available
Yes
Description
Quick make, quick break switch, inverse time element tripping operation and trip free handle thermal-magnetic trip curve.
- • 60 amp 2 pole CH style
- • Heating and AC Rated (HACR)
- • Trip to off feature
- • 3/4" Format
- •
