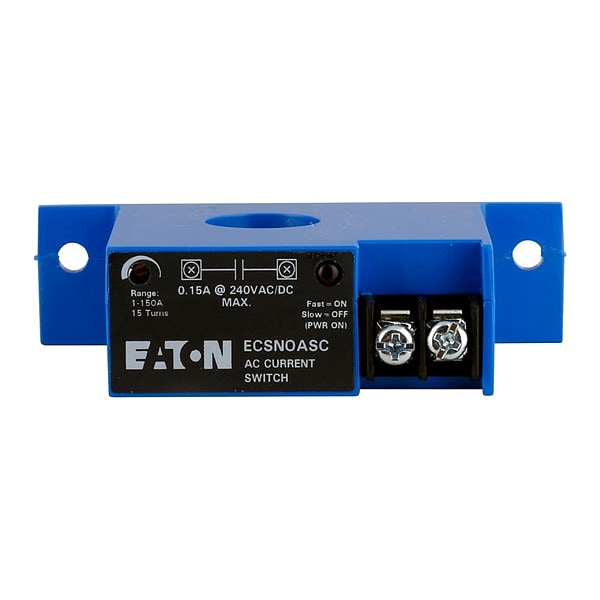

Eaton Current Sensing Rly, 1to150A, Self Powered ECSNOASC - main

Current Sensing Rly, 1to150A, Self Powered

  • Mfr # ECSNOASC

  • Zoro # G8628541

product price: $201.99
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
Self Powered
AC Contact Rating - Relay
0.15A @ 240V
DC Contact Rating - Relay
0.15A @ 240V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ECSNOASC
Zoro #
G8628541
UPC #
786685120911
Country of Origin
United States

Dimensions

Body Depth - Relay
0.93 in
Overall Height - Relay
2.18 in
Body Height - Relay
2.18 in
Body Width - Relay
3.5 in
Body Depth
3.5 in
Body Height
2.18 in
Sensing Hole Diameter
0.74 in
Body Width
0.93 in
Overall Depth
2.18 in
Product Height
2.18 in
Product Length/Depth
3.5 in
Product Width
.93 in

Details

Item
Adjustable Current Sensing Relay
Input or Control Voltage
Self Powered
AC Contact Rating - Relay
0.15A @ 240V
DC Contact Rating - Relay
0.15A @ 240V
Mounting - Relay
Surface
Contact Form - Relay
SPST-NO
Sensing Amp Range
1.00 to 150.00A
Trip Point
1 to 150 A
Trip Delay
0.12 sec
Core Type - Relay
Solid
Electrical Connection
Screw Terminal
Status Indicator
LED Indicator
Mounting
Surface
Core Type
Solid
Max. Inrush Current
150 A
Item - Relay
Current Sensing Relay
Contact Form
SPST-NO
Type of Output
Solid State
Contact Amps
0.15A
Sensor Opening
0.74 in
Contact Rating (AC)
0.15 A @ 240V
Number of Pins
2
Operating Current
150 A
Housing Material
Plastic
Standards
RoHS Compliant, UL Listed
Adjustment Method
Switch
Wire Gauge
14 AWG
Weight
0.33 lb
For Use With
Sensors
Minimum Operating Temperature
-58 Degrees F
Mounting Style
Surface
Contact Rating (DC)
0.15 A @ 240V
Monitored Parameters
Overcurrent, Undercurrent
Trip Point Type
Adjustable
Current Rating
150 A
Frequency
100 Hz
Maximum Operating Temperature
122 Degrees F
AC current - max
150 A
Operating Temperature
-58° to 122°F
Enclosure material
UL94 V0 flammability rated plastic
Switch type
Adjustable 1-150 A setpoint
LED indicator
LED indicator
Contact Rating
0.15A at 240 Vac/dc
Contact configuration
SSR
Enclosure
Solid-core housing
Connection
Screw terminal
Product Name
Eaton ECS series CurrentWatch AC current switch

Description

Adjustable Current Sensing Relay, Contact Form SPST-NO, Contact Rating (AC) 0.15 A @ 240V, Contact Rating (DC) 0.15 A @ 240V, Core Type Solid, Current Rating 150 A, Input Voltage Not Applicable, Monitored Parameters Overcurrent, Undercurrent, Mounting Style Surface, Number of Pins 2, Trip Point 1 to 150 A, Trip Point Type Adjustable, Adjustment Method Switch, Electrical Connection Screw Terminal, Sensing Hole Diameter 0.74 in, Status Indicator LED Indicator, Wire Gauge 14 AWG, Body Depth 3.5 in
