Shop EATON

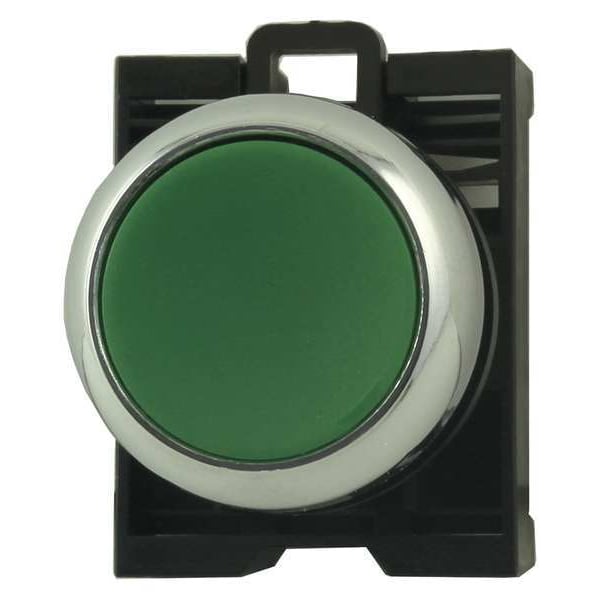

Push Button operator, 22 mm, Green

  • Mfr # M22M-DR-G

  • Zoro # G6230926

product price:  $16.15
/ea

Key Features

Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M22M-DR-G
Zoro #
G6230926
UPC #
786685898902
Country of Origin
Japan

Dimensions

Panel Cutout Diameter
22 mm
Size
22 mm
Product Width
5 in
Product Height
1.5 in
Product Length/Depth
7 in
Manufacturer Warranty Length
1 yr
Overall Depth
7 in
Overall Width
5 in
Overall Height
1.5 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Maintained
Maintained Action Release
Push/Push
Operator Illumination
Non-Illuminated
Head Color
Green
Head Material
Metal
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
IP Rating
IP67, IP69K
Basic Material
Metal
Bezel Material
Metal
Includes
Metal Bezel
Type of Operator
Flush Button
NEMA Rating
1, 13, 2, 3, 4, 4X
Color
Green
Number of Operators
1
Bezel
Metal
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Series
M22
Lamp Type
LED
Type
Modular pushbutton
Compliances
CE Marked
Illumination
Non-illuminated
Operating mode
Maintained
Environmental rating
IP67, IP69K (IP66 key-release)
Product Name
Eaton M22 modular pushbutton
Number of Indicator Lights
0
Hazardous Location Specification
Not Rated
Resistance Properties
Corrosion Resistant
NEMA Enclosure Rating
13, 4X
Operator Material
Metal
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Product Type
Push Button Operators

Description

Flush Push Button, 22 mm, Maintained, Type of Operator Flush Button, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Green, NEMA Rating 1, 13, 2, 3, 4, 4X, IP Rating IP67, IP69K, Legend Not Applicable, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Includes Metal Bezel, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
