Circuit Breaker, BD Series, 30A, 1 Pole, 120V AC, 10kA
Mfr # BD3030
Zoro # G3210080
product price: $22.89
/eaKey Features
Series
BD
Number of Poles
1
AC Voltage Rating
120V AC
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BD3030
- Zoro #
- G3210080
- UPC #
- 786676369503
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- BR
- Width
- 1 in
- Depth
- 2.90 in
- Height
- 2-1/2 in
- Max. Wire Size
- 4 AWG (Cu/Al)
- Min. Wire Size
- 14 AWG (Cu/Al)
Details
- Item
- Circuit Breaker
- Series
- BD
- Amps
- 30 A
- Number of Poles
- 1
- AC Voltage Rating
- 120V AC
- Circuit Breaker Type
- Tandem
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Thermal Magnetic
- DC Voltage Rating
- Not Rated
- For Use With
- Type BR Loadcenters
- Standards
- UL 489
- Interrupt Rating
- 10 kA
- Features
- Rejection Tab Feature
Description

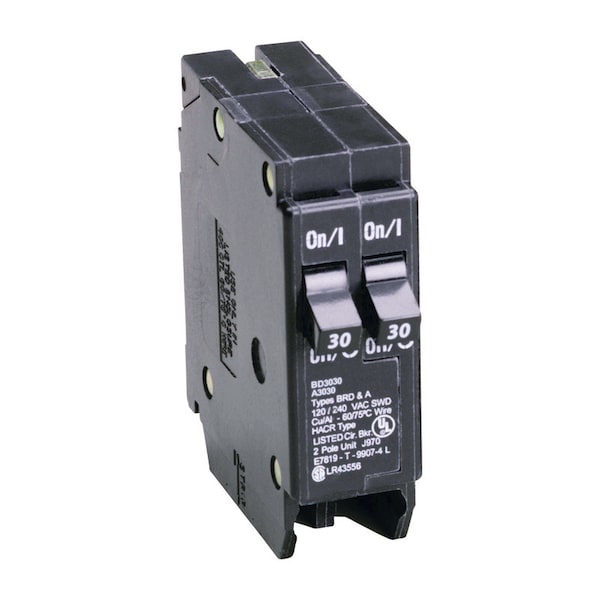

Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton cutler-hammer 30/30 amp 1 inch duplex type BD circuit breaker is also known as tandem or circuit limiting breaker. This style of breaker will only fit into load center bus stabs that are notched to accommodate the rejection clip built into the bus bar contact on the breaker. This is a code requirement that limits the number of breakers that can be installed into a load center.
- • Twin 30/30
- • Heating and AC Rated (HACR)
- • Circuit Limiting for notched bus bars
- • 1" Format
- • 1" Format
- •
