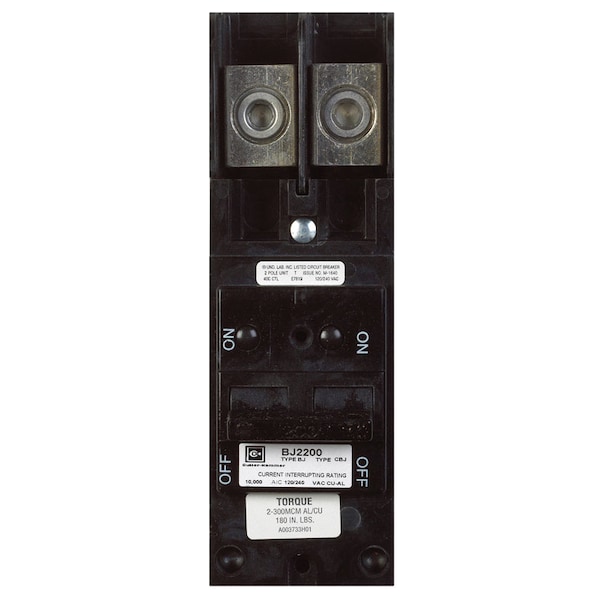

Circuit Breaker, BJ Series, 200A, 2 Pole, 120/240V AC, 10kA
Mfr # BJ2200
Zoro # G8654297
CAD Available
product price: $238.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Series
BJ
Amps
200A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BJ2200
Zoro #
G8654297
UPC #
786676367202
Country of Origin
Dominican Republic
Dimensions
Width
3-1/2 in
Depth
6-1/2 in
Height
2-1/2 in
Max. Wire Size
300 kcmil (Cu/Al)
Min. Wire Size
2 AWG (Cu/Al)
Frame Size
BJ
Details
Item
Circuit Breaker
Series
BJ
Amps
200A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Common
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
CAD Available
Yes
Circuit Breaker Type
Main Circuit Breaker
Terminal Connection
Plug-On
Description
This is a Type BR plug on main breaker. It has a 200 amp rating. It can only be used in Type BR load centers.
- • 200 Amp Sub Feed Breaker
- • Takes Spaces in a Type BR Panel
- • For Use in the Type BR Load Center 200 Amp & Above
- •
- •
