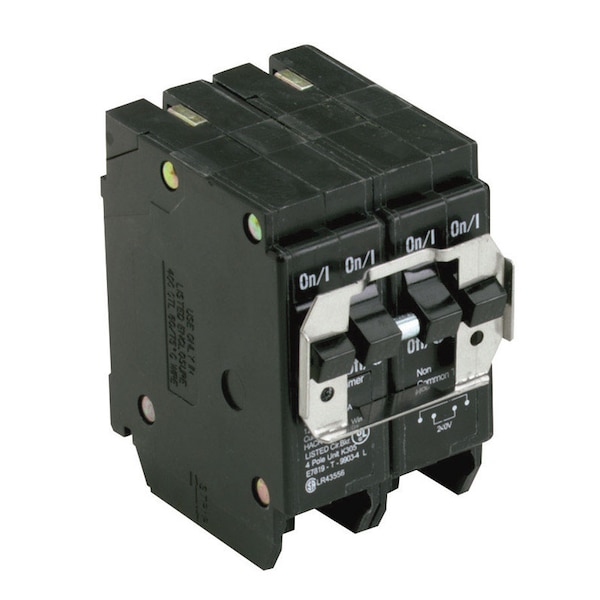

Circuit Breaker, BQ Series, 20 to 30A, 4 Pole, 120/240V AC, 10kA
Mfr # BQ220230
Zoro # G8624580
CAD Available
product price:
$
44.55
/ea
Key Features
CAD Drawing
Series
BQ
Number of Poles
4
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Quadplex
Circuit Breaker Mounting Style
Plug In
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BQ220230
- Zoro #
- G8624580
- UPC #
- 786676370806
- Country of Origin
- Dominican Republic
Dimensions
- Frame Size
- BQ
- Width
- 2 in
- Depth
- 3 in
- Height
- 3 in
- Max. Wire Size
- 4 AWG (Cu/Al)
- Min. Wire Size
- 14 AWG (Cu/Al)
Details
- CAD Available
- Yes
- Item
- Circuit Breaker
- Series
- BQ
- Amps
- 20/30 A
- Number of Poles
- 4
- AC Voltage Rating
- 120/240V AC
- Circuit Breaker Type
- Quadplex
- Circuit Breaker Mounting Style
- Plug In
- Max. AIR Rating
- 10kA
- Trip Type
- Independent
- DC Voltage Rating
- Not Rated
- Interrupt Rating
- 10 kA
- Features
- Rejection Tab Feature
- For Use With
- Type BR Loadcenters
Description
Circuit breakers protect the wires in your home from overheating (referred to as an overload) and fault currents (referred to as short circuits). The Eaton Cutler-Hammer Quadplex or Quad type Circuit Breaker is designed to create (4) circuits in (2) spaces. This allows for 240-Volt circuits. The BQ style breaker has an independent trip as well as a rejection tab feature. These breakers are designed for use in BR type load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip.
- • For use in type BR load centers
- • Carry listing for HACR applications
- • Requires notched stabs in loadcenter
- •
- •
