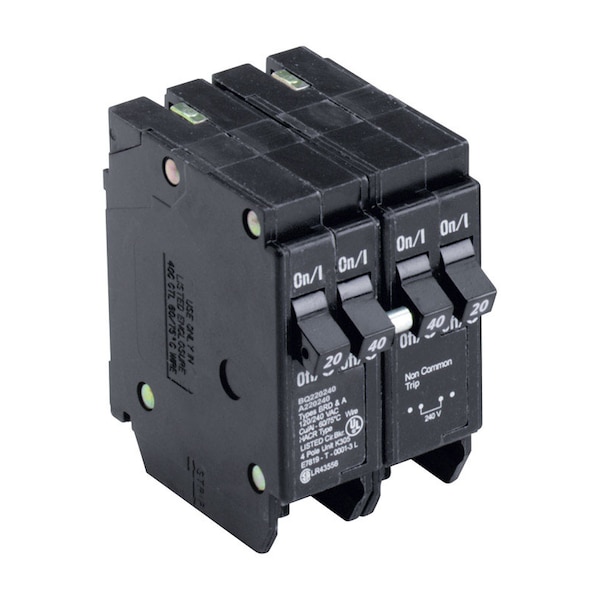

Eaton Cutler-Hammer Circuit Breaker, BQ Series, 20 to 40A, 4 Pole, 120/240V AC, 10kA BQ220240 - main

Circuit Breaker, BQ Series, 20 to 40A, 4 Pole, 120/240V AC, 10kA

  • Mfr # BQ220240

  • Zoro # G8634338

product price:  $43.89
/ea

Key Features

Series
BQ
Number of Poles
4
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Quadplex
Circuit Breaker Mounting Style
Plug In
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
BQ220240
Zoro #
G8634338
UPC #
786676370851
Country of Origin
Dominican Republic

Dimensions

Frame Size
BQ
Width
3 in
Depth
2 in
Height
2.40 in
Min. Wire Size
14 AWG (Cu/Al)
Max. Wire Size
4 AWG (Cu/Al)

Details

Item
Circuit Breaker
Series
BQ
Amps
20 to 40A
Number of Poles
4
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Quadplex
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA
Trip Type
Independent
DC Voltage Rating
Not Rated
Features
Rejection Tab Feature
Interrupt Rating
10 kA
For Use With
Type BR Loadcenters

Description

Circuit breakers protect the wires in your home from overheating referred to as an overload and fault currents referred to as short circuits. The Eaton Cutler-Hammer Quadplex or Quad type Circuit Breaker is designed to create 4 circuits in 2 spaces. This allows for 240-volt circuits. The BQ style breaker has an independent trip as well as a rejection tab feature. These breakers are designed for use in BR type load centers and should be installed only in panel positions that have notched bus stabs that accommodate the rejection clip. Also, BQ circuit breakers are UL approved genuine replacement breakers for load centers made by Westinghouse, challenger and Bryant.


  • • 20 Amp 2 Pole 40 Amp 2 Pole CB
  • • For use in BR Loadcenters Only
  • • Requires notched stabs in loadcenter
  • •
  • •
