Shop EATON CUTLER-HAMMER

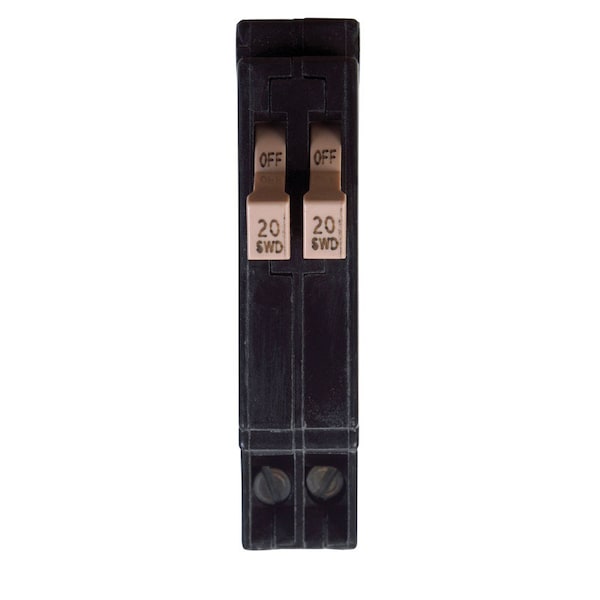

Circuit Breaker, CHT Series, 20A, 1 Pole, 120/240V AC, 10kA

  • Mfr # CHT2020
  • Zoro # G3209846
CAD Available
product price:
$
42.69
/ea

Key Features

CAD Drawing
Series
CHT
Amps
20 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Max. AIR Rating
10kA
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CHT2020
Zoro #
G3209846
UPC #
782113631547
Country of Origin
Dominican Republic

Dimensions

Frame Size
CH
Width
0.74 in
Depth
0.90 in
Height
3.29 in
Min. Wire Size
14 AWG
Max. Wire Size
8 AWG
Wire Size
#14-8 AWG Cu/Al

Details

CAD Available
Yes
Item
Circuit Breaker
Series
CHT
Amps
20 A
Number of Poles
1
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Twin Breaker
Max. AIR Rating
10kA
Trip Type
Thermal Magnetic
DC Voltage Rating
Not Rated
Interrupt Rating
10 kA
Frequency Rating
50-60 Hz
Certifications
UL 489;UL Listed

Description

The Eaton Cutler-Hammer 20 amp 3/4 inch duplex double-pole type CHT current-limiting circuit breaker is designed to protect your home's wiring from overheating or short-circuiting. The UL-listed breaker has a maximum load of 240-volt and trips to the off position. This breaker is compatible with load centers marked CHT.


  • • 20 amp Tandem
  • • For Use In Cutler-Hammer Panels Only
  • • 2, 20amp single breakers in 1 3/4" case
  • •
  • •
