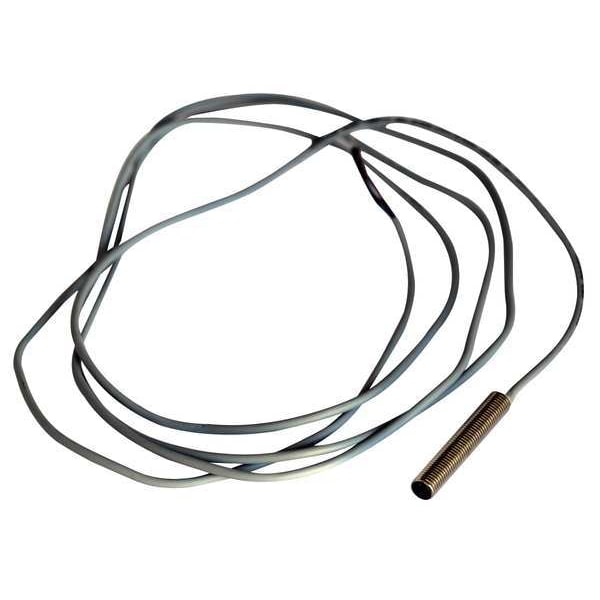

Cylindrical, Inductive Proximity Sensor, 8 mm Dia., Brass, 2 m, Bare Wire, 3 Wires, Unshielded

  • Mfr # E57-08GU02-G

  • Zoro # G8984796

product price:
$
103.99
/ea
Free Shipping & Returns

Key Features

Overall Diameter
8 mm
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Cable Length
2 m
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E57-08GU02-G
Zoro #
G8984796
UPC #
782114288528
Country of Origin
China
Item
Proximity Sensor
Style
Inductive, Cylindrical
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
Bare Wire
Output Circuit Type
PNP
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
2 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NO
Standards
CE, CSA, UL Listed
Proximity Sensor Electrical Connection
2m Cable
Proximity Sensor Operating Frequency
2,000 Hz
Max. Current Load
100mA
IP Rating
IP67, IP69K
Description/Special Features
360 Degrees Viewable LED Output Indication
Operating Temp. Range
-13 Degrees to 158 Degrees F
Series
E57
Protection
Short circuit
Cable Type
Polyvinyl Chloride (PVC)
Maximum DC Current
100 mA
Accuracy
< 1.0% sensing range
Contact Rating
100 mA at 10-30 Vdc
Led Indicator
Output ON
Environmental Rating
IP67, IP69K
Load Current - Maximum
200 mA
Body Finish
Nickel Plated
Switching Frequency
2,000 Hz
NEMA Enclosure Rating
12, 13, 4, 4X, 6, 6P
Operating Temperature - Maximum
158 Degrees F
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Minimum
-13 Degrees F
Sensing Method
Inductive
Electrical Installation Type
Prewired Cable
Features
Short Circuit Protection

Description

Inductive Cylindrical Proximity Sensor, Inductive, 8 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 2,000 Hz, Proximity Sensor Output Circuit Type 3 Wire PNP, Max. Detecting Distance 2 mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, NEMA Rating 6P, IP Rating IP67, IP69K, Case Material Nickel Plated Brass, Length 45 mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 100mA
