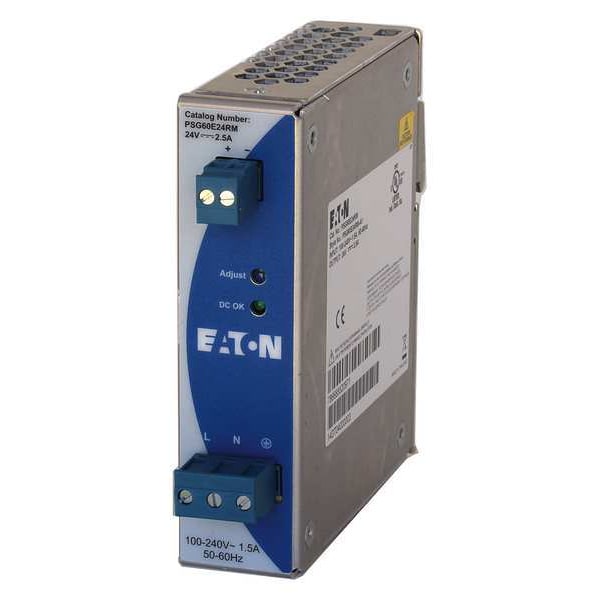

Eaton DC Power Supply, 100/240V AC, 24V DC, 60 W, 2.5 A, DIN Rail PSG60E24RM - main

DC Power Supply, 100/240V AC, 24V DC, 60 W, 2.5 A, DIN Rail

  • Mfr # PSG60E24RM

  • Zoro # G8569486

product price: $139.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSG60E24RM
Zoro #
G8569486
UPC #
-
Country of Origin
Thailand

Dimensions

Overall Height
1.26 in
Overall Width
4.92 in
Overall Depth
4.76 in
Height
4.92 in
Depth
4.76 in
Width
1.26 in
Wire Size - Minimum
22 AWG
Wire Size - Maximum
12 AWG

Details

Item
DC Power Supply
Input Voltage
100/240V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Phase - Electrical
Single
Hz
50/60 Hz
Output Voltage
24V DC
Status Indicator
LED/DC OK Signal
Series
PSG
Peak Amps
3.75
Case Material
Aluminum Case
Output Amps
3.75A
Style
Switching
Hold Up Time
Greater Than 22 msec
Power Rating
60W
Standards
CE, CSA, cUL, cULus/UL 60950-1, EN, German Safety, IEC, RoHS, UL 508
Output Noise
Less Than 50mV
Features
Din Rail Mounting, Industrial Power Supply, Low Output Noise, Overvoltage And Short Circuit Protection, Screw Terminal Connections, Ultra Slim Footprint
Operating Temp. Range
-20 to 80°C
IP Rating
IP20
Terminals
Removable
Certifications
CSA Certified;EN Listed;cUL Certified;IEC Rated;UL 508;cULus/UL 60950-1
Compliances
CE Marked;German Safety
Special Features
Varistor Transient Surge Voltage
NEMA Enclosure Rating
1
Maximum Efficiency @ 115V AC
90 %
Input Frequency - Nominal
50/60 Hz
Mean Time Between Failures (MTBF)
1,000,000 hr
Manufacturer Warranty
1 yr Installation, 18 mo Shipment
Maximum Efficiency @ 230V AC
90 %
Current - Inrush
35 A
Operating Temperature - Maximum
167 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Current - Peak
3.75 A

Description

DC Power Supply, Input Voltage 100 to 240V AC, Output Voltage 24V DC, Power Rating 60W, Output Amps 3.75, Mounting DIN Rail, Switching, Case Material Aluminum Case, Height 4.92 in, Width 1.26 in, Depth 4.76 in, Series PSG, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 3.75, IP Rating IP20, Output Noise Less Than 50mV, Hold Up Time Greater Than 22 msec, Status Indicator LED/DC OK Signal, NEMA Rating 1
