Shop EATON

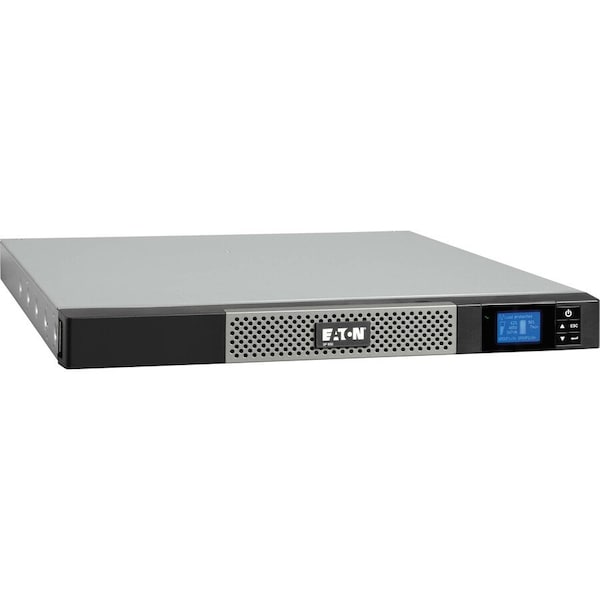

Eaton 5P 1550Va Rackmount 1U Lcd 208/230V

  • Mfr # 5P1550GR

  • Zoro # G0484667

product price:  $1,353.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
1550VA
Mounting
Rack
Wattage
1100 W
Input Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5P1550GR
Zoro #
G0484667
UPC #
743172043085
Country of Origin
Unknown

Dimensions

Width
21.8 in
Product Length/Depth
21.8 in
Rack size
1U
Product Height
1.7 in

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
1550VA
Mounting
Rack
Wattage
1100 W
Input Voltage
230V AC
Output Voltage
230V AC
Backup Time (Half/Full Load)
13 min/4 min
Number of Outlets
6
Housing Color
Black, Silver
Standards
UL 1778
NEMA Receptacle Configuration
(6) C13
Battery Type
Sealed Lead Acid (SLA)
Input Power Factor
1
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Output Voltage Range
184-256 Vac
Temperature range
0° to 40°C (32° to 104°F)
Input voltage range
160-294 V (adjustable to 150 V-294 V)
Battery replacement
User replaceable
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
BTU Rating
Online: 113, Battery 714
Output Frequency
50/60 Hz
Compliances
FCC Part 15 Class A Subpart B Sections 15.107b , 15.109b
Form factor
Rack
Altitude
Up to 10,000 ft (3000m) without de-rating
Efficiency
0.98
Software Compatibility
Eaton Intelligent Power Manager (included)
Nominal Frequency
50-60 Hz
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Relative Humidity
0-90% non-condensing
Input connection
C14
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Noise level
<45 dB at 1 meter
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
