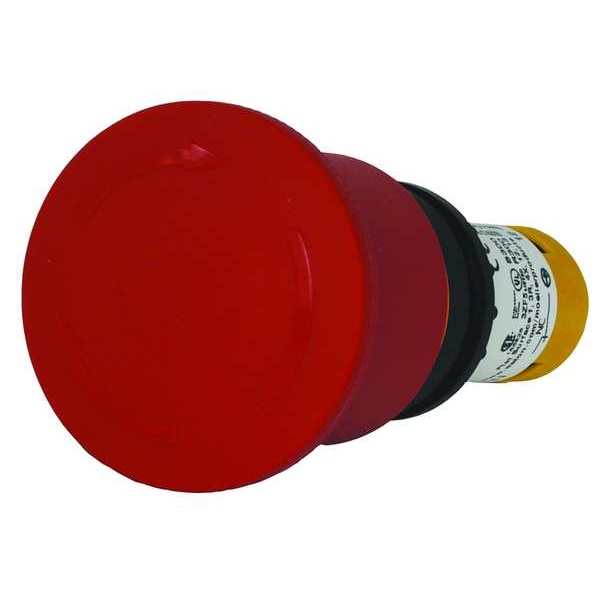

Eaton Emergency Stop Push Button, Red C22-PVT45P-K02 - main

Emergency Stop Push Button, Red

  • Mfr # C22-PVT45P-K02

  • Zoro # G7519285

product price: $78.19
/ea
Free Shipping & Returns

Key Features

Material
Plastic
Color
Red
Size
22 mm
Contact Form
2NC
IP Rating
IP67, IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C22-PVT45P-K02
Zoro #
G7519285
UPC #
786685898315
Country of Origin
Germany

Dimensions

Size
22 mm
Product Height
3.66 in
Product Length/Depth
1.77 in
Product Width
1.77 in
Mushroom Head Diameter
40 mm
Panel Cutout Diameter
22 mm
Overall Depth
1.77 in
Overall Width
1.77 in
Manufacturer Warranty Length
1 yr
Overall Height
3.66 in

Details

Item
Emergency Stop Push Button
Material
Plastic
Color
Red
Contact Form
2NC
IP Rating
IP67, IP69K
Bezel
Silver Nylon
Contact Rating
1.5A @ 230V AC, 3A @ 24V DC
Legend
No Legend
Number of Operators
1
NEMA Contact Rating Designation
AC-15, DC-13
NEMA Rating
1, 12, 13, 3, 4X
Action
Maintained
Head Material
Plastic
Terminal Connection
Screw Clamp
Type of Operator
45mm Mushroom Head
Basic Material
Plastic
Standards
CCC, CE, CSA, IEC-60947, Lloyd's Register, RoHS, UL Listed, VDE 0660
Features
Completely Sealed
Product Type
Emergency Stop Push Buttons
Bezel Material
Nylon
Type
Emergency Stop
Series
C22
Actuator
60 mm twist-release button
Certifications
IEC 60947
Illumination
Non-illuminated
Actuator function
Maintained
Compliances
DIN VDE 0600
Button color
Red
Contact configuration
2 NC
Product Name
Eaton C22 compact pushbutton
Push Button Style
Mushroom Head
NEMA Enclosure Rating
1, 12, 13, 3, 4X
Resistance Properties
Corrosion Resistant
Maintained Action Release
Twist
Operator Voltage Rating - Maximum
230 V AC
Head Color
Red
Operating Temperature - Minimum
-13 Degrees F
Operator Illumination
Non-Illuminated
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
1.5 A @ 230 V
Operator Material
Plastic
Mechanical Operating Durability
1.00 x 10^6
Number of Indicator Lights
0
DC Contact Rating
3 A @ 24 V

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 2NC, Bezel Silver Nylon, Color Red, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend No Legend, Standards CCC, CE, CSA, IEC-60947, Lloyd's Register, RoHS, UL Listed, VDE 0660, Terminal Connection Screw Clamp, Features Completely Sealed
