  13. Emergency Stop Push Button, Red
Shop All Push Button Accessories
Eaton

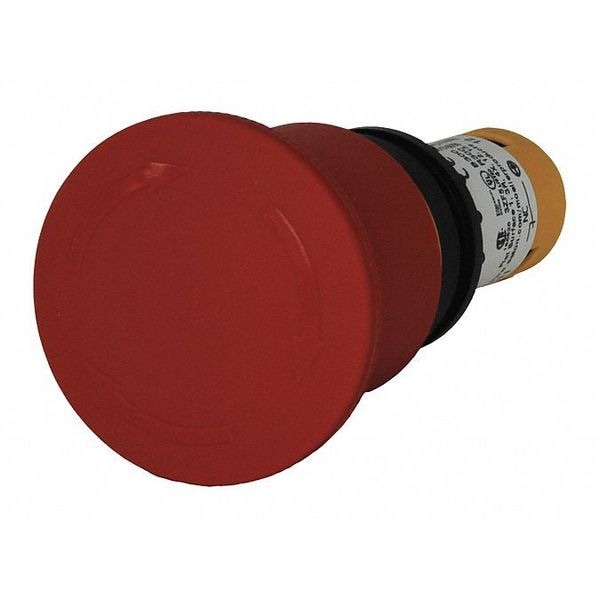

Emergency Stop Push Button, Red

original price: $101.01
33% off
new price: $66.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Size 22 mm
  • Legend No Legend
  • Features Completely Sealed
  • Color Red
  • Material Plastic
See all product information

Product Information

Dimensions

Size 22 mm
Product Length/Depth 1.77 in
Product Width 1.77 in
Product Height 3.66 in
Mushroom Head Diameter 40 mm
Overall Height 3.66 in
Overall Width 1.77 in
Manufacturer Warranty Length 1 yr
Panel Cutout Diameter 22 mm
Overall Depth 1.77 in

Details

Item Emergency Stop Push Button
Legend No Legend
Features Completely Sealed
Color Red
Material Plastic
IP Rating IP67, IP69K
Contact Rating 1.5A @ 230V AC, 3A @ 24V DC
Standards CSA, DIN VDE 0600, EN 60947, IEC-60947, UL Listed
Head Material Plastic
Type of Operator 45mm Mushroom Head
Terminal Connection Screw Clamp
Bezel Silver Nylon
Basic Material Plastic
Action Maintained
NEMA Contact Rating Designation AC-15, DC-13
Contact Form 1NO/1NC
Number of Operators 1
NEMA Rating 1, 12, 13, 3, 4X
Product Type Push Button Operators
Bezel Material Nylon
Type Emergency Stop
Illumination Non-illuminated
Series C22
Compliances DIN VDE 0600
Actuator 60 mm twist-release button
Button color Red
Certifications CSA Certified
Contact configuration 1 NO-1 NC
Actuator function Maintained
Product Name Eaton C22 compact pushbutton
Mechanical Operating Durability 1.00 x 10^6
Operator Material Plastic
Operating Temperature - Maximum 158 Degrees F
DC Contact Rating 3 A @ 24 V
Push Button Style Mushroom Head
Operator Illumination Non-Illuminated
Maintained Action Release Twist
Number of Indicator Lights 0
Operating Temperature - Minimum -13 Degrees F
Operator Voltage Rating - Maximum 230 V AC
AC Contact Rating 1.5 A @ 230 V
Resistance Properties Corrosion Resistant
Head Color Red
NEMA Enclosure Rating 1, 12, 13, 3, 4X

Description

Emergency Stop Push Button, 22 mm, Maintained Action, 45mm Mushroom Head Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Silver Nylon, Color Red, Contact Rating 1.5A @ 230V AC, 3A @ 24V DC, NEMA Contact Rating Designation AC-15, DC-13, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 4X, IP Rating IP67, IP69K, Legend No Legend, Standards CSA, DIN VDE 0600, EN 60947, IEC-60947, UL Listed, Terminal Connection Screw Clamp, Features Completely Sealed, Material Plastic
