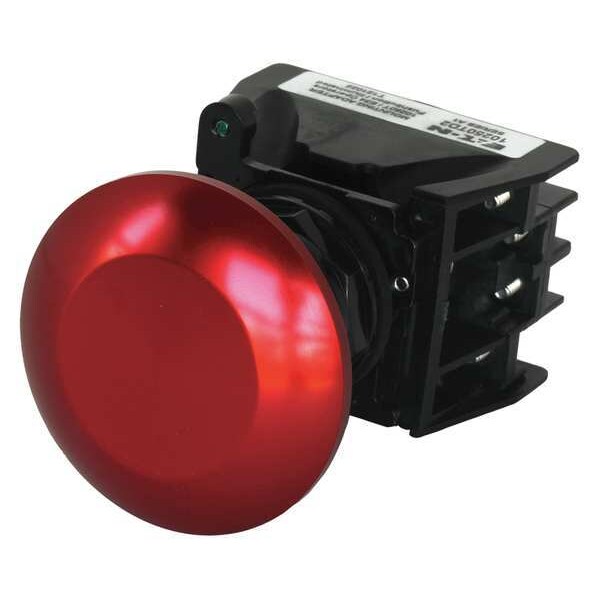

Hazardous Location Push Button, 30 mm, 2NO/2NC, Red

  • Mfr # E34EX713R
  • Zoro # G8737005
product price:
$
381.99
/ea
Free Shipping & Returns

Key Features

Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
30 mm
Head Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E34EX713R
Zoro #
G8737005
UPC #
782114524749
Country of Origin
Dominican Republic
Item
Hazardous Location Push Button
Push Button Style
Mushroom Head
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Epoxy Coated Metal
Terminal Connection
Screw Clamp
Standards
CE, CSA, FDA 3-A, UL 505
NEMA Contact Rating Designation
A600 and Q300
Bezel
Epoxy Coated/Chemical Resistant Metal
Safety Rating
FDA Approved 3A Sanitary Chemical Requirements, Class 1, Div 2, Groups B,C, D (NEC), Class 1, Zone 2, IIB and H2 (NEC 505)
Type of Operator
Jumbo Mushroom Head Push Button
Contact Form
2NO/2NC
Color
Red
IP Rating
IP65
Includes
Drainage Holes to Prevent Moisture Build-Up, Grounding Nibs Designed to Bite Through Most Enclosure Coatings
Contact Rating
10A @ 600V AC, 2.5A @ 250V DC
NEMA Rating
12, 13, 3, 3R, 4, 4X
Number of Operators
1
Features
Factory Sealed, Drainage Holes, Grounding Nibs
Bezel Material
Zinc Die Cast
Series
E34
AC Contact Rating
10 A @ 600 V
DC Contact Rating
5 A @ 250 V
Type
Pushbutton
Rating
NEC Class I Division 2, Groups B, C and D
Operating mode
Momentary
Actuator
Jumbo mushroom
Contact configuration
2 NO-2 NC
Actuator Material
Anodized aluminum
Certifications
UL 505
Actuator Color
Red
Illumination
Non-illuminated
Compliances
CE Marked
Product Name
Eaton E34 pushbutton
Resistance Properties
Corrosion Resistant, Oil and Grease Resistant
Mechanical Operating Durability
1.00 x 10^7
Product Type
Push Button Operators
Operating Temperature - Maximum
140 Degrees F
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Operator Material
Metal
Operating Temperature - Minimum
32 Degrees F
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Number of Indicator Lights
0

Dimensions

Panel Cutout Diameter
30 mm
Mushroom Head Diameter
65 mm
Size
30 mm
Product Diameter
2.5 in
Product Length/Depth
1 in
Product Width
1 in
Product Height
1 in
Overall Depth
1 in
Overall Height
1 in
Overall Width
1 in
Manufacturer Warranty Length
1 yr
Fits Chest Size
Factory Sealed, Drainage Holes, Grounding Nibs

Description

Hazardous Location Push Button, 30 mm, Momentary Action, Jumbo Mushroom Head Push Button Type of Operator, Head Material Epoxy Coated Metal, Contact Form 2NO/2NC, Bezel Epoxy Coated/Chemical Resistant Metal, Color Red, Contact Rating 10A @ 600V AC, 2.5A @ 250V DC, NEMA Contact Rating Designation A600 and Q300, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, FDA 3-A, UL 505, Terminal Connection Screw Clamp
