  15. Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

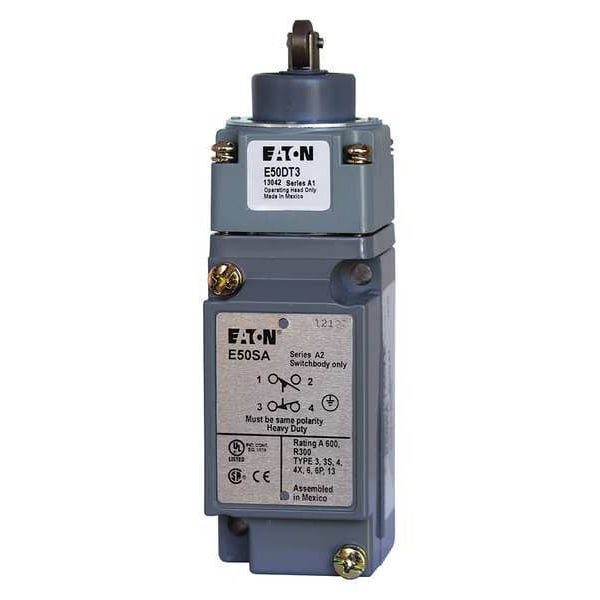

Eaton Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top E50AT3 - main

Heavy Duty Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 600V AC, Actuator Location: Top

  • Mfr # E50AT3

  • Zoro # G5232473

product price: $500.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E50AT3
Zoro #
G5232473
UPC #
782113308821
Country of Origin
Mexico

Dimensions

Actuator Length
1.78"
Depth
1.79"
Body Width - Limit Switch
1.54 in
Body Height - Limit Switch
3.13 in
Body Depth - Limit Switch
1.78 in
Height
1.88"
Width
1.54"
Actuator Length - Limit Switch
1.78 in
Roller Width
0.16 in
Arm Width
0.36 in
Arm Depth
0.36 in
Product Length/Depth
5 in
Product Width
2.25 in
Product Height
2 in
Overall Depth
5 in
Overall Width
2.25 in
Body Width
1.54 in
Arm Length - Minimum
0.16 in
Overall Height
2 in
Arm Length - Maximum
0.36 in
Mounting Hole Diameter
0.2 in
Roller Diameter
0.44 in
Manufacturer Warranty Length
1 yr
Body Depth
1.78 in
Body Height
3.13 in

Details

Item
Heavy Duty Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Style
Plunger, Roller
NEMA Rating
3, 3S, 4X, 6P
Wiring Entry
1/2 in NPT
Body Style (Limit Switch)
Standard
Basic Actuator Style (Limit Switch)
Plunger
Actuator Location
Top
Contact Form - Limit Switch
1NC/1NO
Standards
CE, CSA, UL
Mounting Hole Spacing - Limit Switch
2.34 in x 1.16 in
Contact Form
1NC/1NO
Limit Switch Style
Heavy Duty Limit Switch
Mounting Hole - Limit Switch
(2) 0.20 in dia
Amps
10
DC Contact Rating
1 A @ 250 V
Travel
Operating Travel 0.04 in, Reset Travel 0.02 in, Total Travel 0.28 in
Electrical Connection
Screw Terminals
Stem Thread - Limit Switch
No Stem
Operating Temp. Range
14 Degrees to 250 Degrees F
Movement
Linear
Voltage Rating
600VAC
Boot Sealed Actuator (Limit Switch)
No
IP Rating
67
Boot Sealed Actuator - Limit Switch
No
Operating Force
4.0 in-lb
Actuator Location (Limit Switch)
Top
Mounting Hole Pattern - Limit Switch
2 Hole Diagonal
Actuator Style (Limit Switch)
Plunger, Roller
Series
E50
AC Contact Rating
10A at 600V
Differential Travel
0.25 in
Connection Type
Screw terminal
Body Material
Zinc
Certification
CSA Certified
Roller Material
Nylon
Arm Material
Metal
Weight
1.146 lb
Accessories
E50DT3
Operating Temperature - Max
201 °F
Contact Rating
10A at 240 Vac, 1A at 250 Vdc
Type
Assembly
Contact Configuration
1 NO-1 NC
Maximum AC Current
10 A continuous
Enclosure Material
Die cast zinc
Environmental Rating
NEMA 1, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, IP67
Operating Temperature - Min
14 °F
Maximum DC Current
1A
Certifications
CSA Certified;UL Listed
Actuator
Top push roller, spring return
Product Name
Eaton E50 NEMA heavy duty plug-in limit switch
Operating Force - Maximum
4 lbf
Action
Momentary/Momentary
Roller Adjustability
Fixed
Number of Mounting Holes
2
Directional Movement
Linear
Total Travel
0.28 in
Operating Temperature - Minimum
14 Degrees F
Plunger Adjustability
Fixed
Overtravel
0.28 in
Operating Temperature - Maximum
201 Degrees F
Includes Actuator
Actuator Included
Operating Torque - Minimum
4 in-lb
Boot Sealed Actuator
No Boot Included
Pretravel
0.02 in
Operating Torque - Maximum
18 in-lb
Mounting Style
Surface
Body Configuration
Plug-In
Mounting Hole Horizontal Center to Center Distance
59 mm
Arm Adjustability
Adjustable
Mounting Hole Vertical Center to Center Distance
29 mm
Operating Force - Minimum
8 ozf
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Lamp Type
No Lamp Module Included
Reset Travel
0.02 in
Roller Position
Top

Description

Push Roller Plunger Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.78 in, Body Height - Limit Switch 3.13 in, Body Width - Limit Switch 1.54 in, Body Depth - Limit Switch 1.78 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 3, 3S, 4X, 6P
