Shop EATON

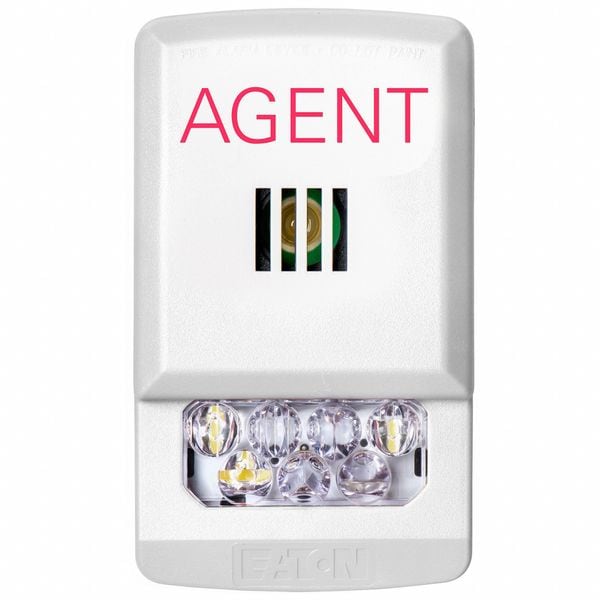

Horn Strobe, Horn, Continuous/Pulse, 24V, 86 dBA, Plastic, White, Wall Mount

  • Mfr # ELHSW-A

  • Zoro # G805987701

product price:  $98.19
/ea

Key Features

Housing Material
Plastic
Mounting
Wall
Color
White
Audible Alarm Type
Horn
Voltage
24V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ELHSW-A
Zoro #
G805987701
UPC #
786697010132
Country of Origin
Romania

Dimensions

Height
1.57 in
Depth
4.79 in
Width
2.76 in
Overall Depth
4 25/32 in
Overall Length
4 25/32 in
Overall Width
2 3/4 in

Details

Item
Horn Strobe
Housing Material
Plastic
Mounting
Wall
Color
White
Audible Alarm Type
Horn
Voltage
24V
Standards
FCC, RoHS, UL Listed, ULC
Indoor/Outdoor
Indoor
Decibels
86 dBA
Sound Pattern
Continuous/Pulse
Watts
5 W
Lens Material
Lexan
Lamp Life
100,000 hr
Power Source
Wire
Lens Design
LED
Lamp Type
LED
Features
Continuous T3 and T3/T4, Energy Efficient, Fire and CO signaling in 1 device, Low-Profile Design
Includes
Mounting Plate
Light Output
185 cd
Operating Temp.
32 Degrees to 122 Degrees F
Visual Indicator Type
Strobe
Housing Color
White
Current Drawn
0.022 DC, 0.03 DC, 0.06 DC, 0.086 DC, 0.125 DC, 0.185 DC
Lens Color
Clear
Product Type
Horn and Strobe
Wattage
5 W
Operating Temperature - Minimum
32 Degrees F
Sound Style
Horn
Light Operating Mode
Strobe
Mounting Style
Surface Mount
For Location
Indoor
Operating Temperature - Maximum
122 Degrees F
Operating Current
0.022 A @ DC, 0.030 A @ DC, 0.060 A @ DC, 0.086 A @ DC, 0.125 A @ DC, 0.185 A @ DC
Light Source
LED
Sound Continuity
Continuous
Legend
Agent
Lifespan
100,000 hr
Alarm Volume @ 10 ft - Maximum
86 dBA
Light Intensity
15 cd, 30 cd, 75 cd, 110 cd, 135 cd, 185 cd
Brightness Selection
Selectable Brightness
Control Protocol
Direct Wire
Number of Sound Patterns
2
Operating Voltage
24V
Power Source - TS Only
Wire

Description

The EATON ELHSW-A is a 24V horn strobe for indoor wall-mount signaling applications. It combines an audible horn and LED strobe in one unit, with continuous or pulse sound operation, 86 dBA output at 10 ft, and selectable light intensity settings. The white plastic housing and clear Lexan lens are intended for visible and audible signaling in a single device.

Key Features:

  • Audible/visual signaling: Horn and strobe combination with horn sound style and strobe light operating mode.
  • Sound output: 86 dBA maximum alarm volume at 10 ft.
  • Sound patterns: 2 sound patterns with continuous/pulse operation; includes Continuous T3 and T3/T4.
  • Selectable brightness: Light intensity settings of 15 cd, 30 cd, 75 cd, 110 cd, 135 cd, and 185 cd.
  • Light source: LED strobe with supplier-rated lamp life: 100,000 hr.
  • Electrical rating: 24V operating voltage, 5 W power rating.
  • Current draw: 0.022 A @ DC, 0.030 A @ DC, 0.060 A @ DC, 0.086 A @ DC, 0.125 A @ DC, 0.185 A @ DC.
  • Construction: White plastic housing with clear Lexan lens.
  • Mounting: Surface-mount, wall installation; mounting plate included.
  • Rated operating temperature range: 32 Degrees to 122 Degrees F.
  • Standards: FCC, RoHS, UL Listed, ULC.
  • Additional features: Fire and CO signaling in 1 device.
