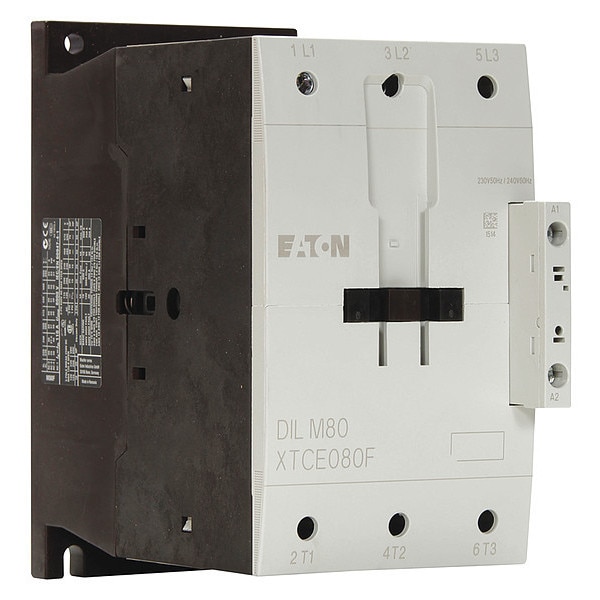

Eaton IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw XTCE080F00A - main

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 3 P, Non-Reversing, Screw

  • Mfr # XTCE080F00A

  • Zoro # G2450506

product price: $362.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTCE080F00A
Zoro #
G2450506
UPC #
786685364889
Country of Origin
Romania

Dimensions

Frame Size
F
Product Length/Depth
7 in
Mounting Hole Diameter
0.24 in
Mounting Hole Distance - Height
6.14 in
Overall Height
7.25 in
Mounting Hole Distance - Width
2.79 in
Overall Depth
7 in
Overall Width
4 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
3
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
0
Standards
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Reversing
No
HP @ 3 Phase - 575V
75 hp
Enclosure NEMA Rating
No Enclosure
HP @ 1 Phase - 230V
15
Frame / Series / Class / Code
Frame F
Type
Full voltage non-reversing contactor
Series
XT
IP Rating
IP20
Contact Configuration
0 NO, 0 NC
Compliances
CE Marked
Amperage Rating
80A
Product Name
Eaton XT IEC contactor
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Single Phase - 120V AC
7 1/2 hp
Horsepower @ Three Phase - 600V AC
75 hp
Maximum Voltage Rating
690V AC
Horsepower @ Three Phase - 208V AC
25 hp
Mechanical Operating Durability
10,000,000
Full Load Current - Inductive
80 A
Horsepower @ Three Phase - 480V AC
60 hp
Mounting Style
DIN Rail, Panel
Maximum Operating Temperature
122 Degrees F
Full Load Current - Resistive
110 A
Horsepower @ Single Phase - 240V AC
15 hp
Electrical Operating Durability
300 (AC-4 400V Ie), 800 (AC-1 400V Ie), 800 (AC-3 400V Ie)
Contactor Style
IEC
Includes Auxiliary Contacts
No
NEMA Enclosure Rating
No Enclosure
Frequency
50/60 Hz
Minimum Operating Temperature
-13 Degrees F
Response Time
Less Than14 msec (AC Operated Opening Delay), Less Than20 msec (AC Operated Closing Delay), Less Than34 msec (DC Operated Opening Delay), Less Than45 msec (DC Operated Closing Delay)
Embedded Surge Suppressor
Yes

Description

The Eaton XT IEC contactor is an IEC magnetic contactor intended for switching power circuits in control panels. It is a 3-pole, non-reversing device with a 120 V AC coil, screw terminals, and includes an embedded surge suppressor; does not include auxiliary contacts. It is part of the XT series, frame size F, rated for operation within the specified voltage range (up to 690 V AC).

Poles: 3

  • Action: Non-Reversing
  • Coil Voltage: 120 V AC
  • Amperage Rating: Full Load Amps – Inductive 80 A; Resistive 110 A
  • Auxiliary Contacts: No
  • Frame/Series: XT; Frame F
  • Electrical Connection: Screw
  • Maximum Voltage Rating: 690 V AC
  • IP Rating: IP20
  • Embedded Surge Suppressor: Yes
  • Mounting Style: DIN Rail, Panel
  • Enclosure: No Enclosure
  • Response Times: Response times are specified as less than the listed durations under standard test conditions.
  • Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947
  • Compliance: CE Marked; RoHS
  • Mechanical Durability: 10,000,000 cycles
  • Electrical Operating Durability: 300 (AC-4 400V Ie); 800 (AC-1 400V Ie); 800 (AC-3 400V Ie)
