  13. IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw

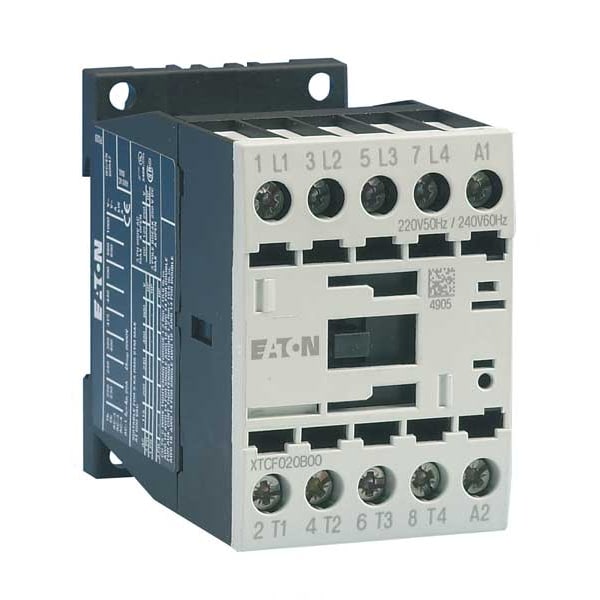

Eaton IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw XTCF020B00A - main

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw

  • Mfr # XTCF020B00A

  • Zoro # G1688066

product price: $116.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XTCF020B00A
Zoro #
G1688066
UPC #
786685363561
Country of Origin
Romania

Dimensions

Product Length/Depth
2.75 in
Frame Size
B
Overall Height
2 in
Mounting Hole Distance - Width
1.38 in
Overall Depth
2.75 in
Mounting Hole Distance - Height
2.36 in
Mounting Hole Diameter
0.16 in
Overall Width
3 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
No Auxiliary Contacts
Coil Voltage
120V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
0
Standards
CE, CSA, EN 60947, IEC 60947, RoHS, UL Listed
Reversing
No
HP @ 3 Phase - 575V
10 hp
Frame / Series / Class / Code
Frame B
Enclosure NEMA Rating
No Enclosure
HP @ 1 Phase - 230V
2
Type
Full voltage non-reversing contactor
Series
XT
IP Rating
IP20
Contact Configuration
0 NO, 0 NC
Amperage Rating
20A
Product Name
Eaton XT IEC contactor
Continuous Ampere Rating
20 A
Compliances
CE Marked
Horsepower @ Single Phase - 240V AC
2 hp
Horsepower @ Three Phase - 600V AC
10 hp
Maximum Voltage Rating
690V AC
Includes Auxiliary Contacts
No
Response Time
Less Than12 msec (DC Operated Opening Delay), Less Than18 msec (AC Operated Opening Delay), Less Than21 msec (AC Operated Closing Delay), Less Than31 msec (DC Operated Opening Delay)
Horsepower @ Single Phase - 120V AC
1 hp
Horsepower @ Three Phase - 240V AC
3 hp
Embedded Surge Suppressor
Yes
Mounting Style
DIN Rail, Panel
Full Load Current - Inductive
12:00 AM
Minimum Operating Temperature
-13 Degrees F
NEMA Enclosure Rating
No Enclosure
Contactor Style
IEC
Frequency
50/60 Hz
Horsepower @ Three Phase - 208V AC
3 hp
Full Load Current - Resistive
22 A
Horsepower @ Three Phase - 480V AC
10 hp
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
122 Degrees F

Description

The Eaton XT IEC contactor is an IEC magnetic contactor used to switch power circuits. It is a 4-pole, non-reversing device with a 120V AC coil and screw terminals, and it does not include auxiliary contacts. This XT series (Frame B) unit is rated within the specified voltage and current ranges, with IP20 protection and no enclosure. It supports mounting on DIN rail or panel, and dimensions are approximately 3 in W x 2 in H x 2.75 in D, with a mechanical durability of 10,000,000 cycles.

Action: Non-Reversing

  • Poles: 4
  • Amperage Rating: 20A
  • Coil Voltage: 120V AC
  • Frequency: 50/60 Hz
  • Maximum Voltage Rating: 690V AC
  • Electrical Connection: Screw Terminals
  • Mounting Style: DIN Rail, Panel
  • Frame Size / Series: Frame B / XT
  • Enclosure: No Enclosure
  • IP Rating: IP20
  • Includes Auxiliary Contacts: No
  • Contact Configuration: 0 NO, 0 NC
  • Certifications: UL Listed; CSA Certified; CE Marked; EN 60947; IEC 60947; RoHS
  • Mechanical Operating Durability: 10000000
  • Overall Dimensions: Dimensions are approximately 3 in W x 2 in H x 2.75 in D
