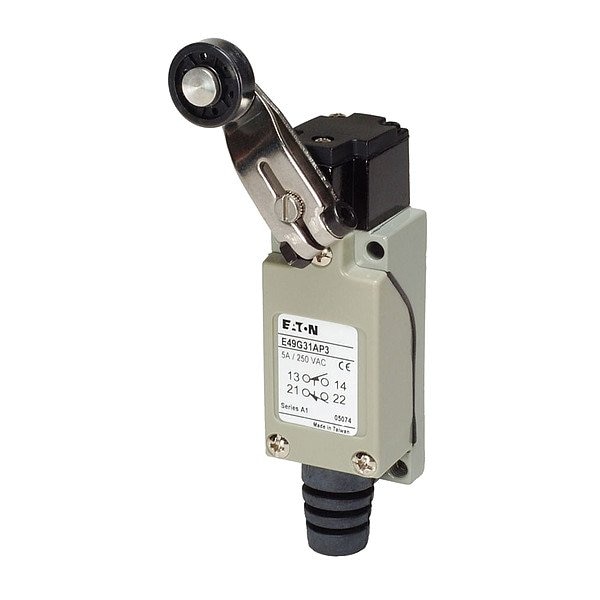

Limit Switch
- Mfr # E49G31AP3
- Zoro # G623352736
product price:Â
$
146.99
/ea
Free Shipping & Returns
Key Features
Electrical Connection
Screw Terminal
Roller Width
0.28 in
Body Material
Metal
Roller Material
Nylon
IP Rating
IP65
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- E49G31AP3
- Zoro #
- G623352736
- UPC #
- 782113983073
- Country of Origin
- Taiwan, Province of China
- Electrical Connection
- Screw Terminal
- Body Material
- Metal
- Roller Material
- Nylon
- Item
- Limit Switch
- IP Rating
- IP65
- Body Configuration
- Non Plug-In
- AC Contact Rating
- 5 A @ 250 V
- Mounting Hole Horizontal Center to Center Distance
- 20 mm
- Actuator Style
- Roller-Lever Arm
- Includes Actuator
- Actuator Included
- Number of Mounting Holes
- 2
- NEMA Enclosure Rating
- 1, 13, 3, 3S, 4, 4X
- Lamp Type
- No Lamp Module Included
- Boot Sealed Actuator
- Boot Included
- Series
- E49
- Contact Form
- 1NO/1NC
- Roller Position
- Side
- Action
- Momentary/Momentary
- Mounting Style
- Surface
- Mounting Hole Vertical Center to Center Distance
- 56 mm
- Directional Movement
- CCW/CW
- DC Contact Rating
- 5 A @ 30 V
- Roller Adjustability
- Fixed
- Arm Adjustability
- Fixed
Dimensions
- Roller Width
- 0.28 in
- Actuator Length
- 1.18 in
- Roller Diameter
- 0.7 in
- Mounting Hole Diameter
- 4.06 mm
- Arm Length - Maximum
- 1.18 in
Description
Limit Switch, Electrical Connection Screw Terminal, IP Rating IP65
