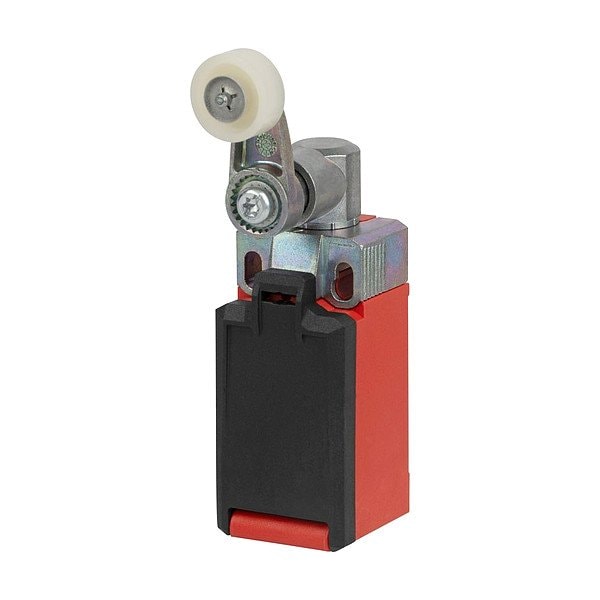

Limit Switch

  • Mfr # E49S71AP7
  • Zoro # G823355797
product price:
$
146.99
/ea
Free Shipping & Returns

Key Features

Electrical Connection
Screw Terminal
Body Material
Plastic
Standards
CE, CSA, RoHS, UKCA, UL Listed
IP Rating
IP67, IP69K
Mounting Hole Vertical Center to Center Distance
60 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E49S71AP7
Zoro #
G823355797
UPC #
782113742144
Country of Origin
Germany

Dimensions

Roller Diameter
0.71 in
Overall Height
1.92 in
Manufacturer Warranty Length
1 yr
Overall Width
1.22 in
Actuator Length
1.11 in
Overall Depth
4.25 in
Mounting Hole Diameter
4.06 mm
Roller Width
0.39 in
Arm Length - Maximum
1.11 in

Details

Electrical Connection
Screw Terminal
Body Material
Plastic
Item
Limit Switch
Standards
CE, CSA, RoHS, UKCA, UL Listed
IP Rating
IP67, IP69K
Mounting Hole Vertical Center to Center Distance
60 mm
Number of Mounting Holes
2
Roller Adjustability
Fixed
Action
Momentary/Momentary
Mounting Style
Surface
Includes Actuator
Actuator Included
Operating Temperature - Maximum
176 Degrees F
Lamp Type
No Lamp Module Included
Arm Adjustability
Fixed
Operating Temperature - Minimum
-22 Degrees F
Operating Force - Minimum
1 N
Contact Action
Snap-Action
DC Contact Rating
1.5 A @ 30 V
Series
E49
AC Contact Rating
10 A @ 240 V
Contact Form
1NO/1NC
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Mounting Hole Horizontal Center to Center Distance
30 mm
Actuator Style
Roller-Lever Arm
Operating Force - Maximum
8 N
Body Configuration
Non Plug-In
Operating Torque - Maximum
1.77 in-lb
Directional Movement
CCW/CW
Roller Material
Nylon

Description

Limit Switch, Electrical Connection Screw Terminal, IP Rating IP67, IP69K
