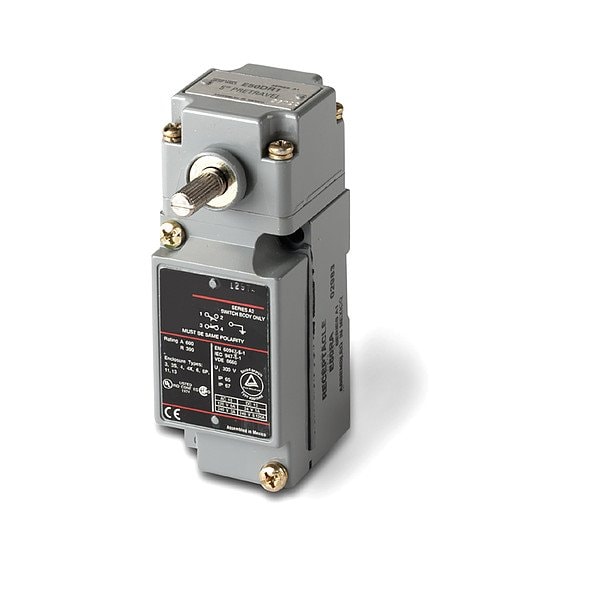

Limit Switch
- Mfr # E50ANR16PC
- Zoro # G223360506
product price:Â
$
896.99
/ea
Free Shipping & Returns
Key Features
IP Rating
IP67, IP69K
Standards
CE, CSA, RoHS, UL Listed
Body Material
Zinc
Electrical Connection
5-Pin Mini Male Connector
Contact Action
Snap-Action
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E50ANR16PC
- Zoro #
- G223360506
- UPC #
- 782113727066
- Country of Origin
- Mexico
Dimensions
- Overall Depth
- 1.54 in
- Overall Width
- 3.03 in
- Manufacturer Warranty Length
- 1 yr
- Overall Height
- 4.67 in
Details
- IP Rating
- IP67, IP69K
- Item
- Limit Switch
- Standards
- CE, CSA, RoHS, UL Listed
- Body Material
- Zinc
- Electrical Connection
- 5-Pin Mini Male Connector
- Contact Action
- Snap-Action
- Actuator Style
- Roller-Lever Arm
- DC Contact Rating
- 1 A @ 125 V
- Mounting Hole Horizontal Center to Center Distance
- 30 mm
- Boot Sealed Actuator
- Boot Included
- NEMA Enclosure Rating
- 1, 13, 3, 3S, 4, 4X, 6, 6P
- AC Contact Rating
- 10 A @ 240 V
- Mounting Hole Vertical Center to Center Distance
- 60 mm
- Contact Form
- 1NO/1NC
- Series
- E50
- Operating Temperature - Maximum
- 201 Degrees F
- Includes Actuator
- No Actuator Included
- Body Configuration
- Plug-In
- Operating Temperature - Minimum
- 10 Degrees F
- Lamp Type
- Neon
Description
Limit Switch, Electrical Connection 5-Pin Mini Male Connector, IP Rating IP67, IP69K
