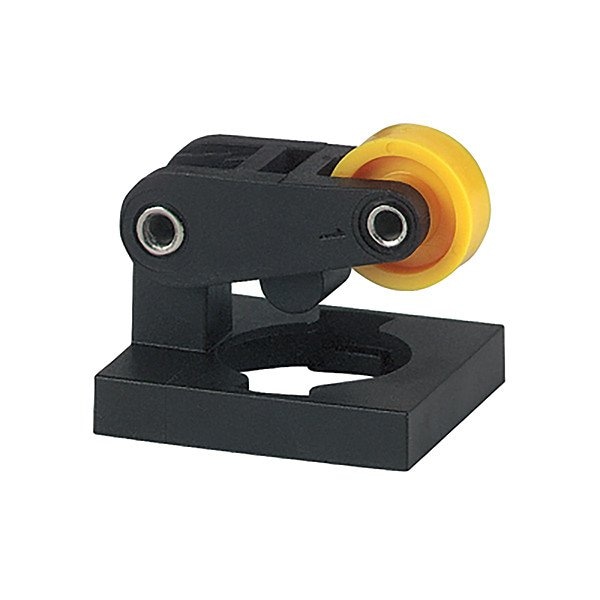

Limit Switch

  • Mfr # LSM-XL
  • Zoro # G023360850
product price:
$
46.99
/ea

Key Features

IP Rating
IP66, IP67
Overall Depth
1.06 in
Features
Approved for Global Application, Operating Heads can be Rotated 90 Degrees, Positive Opening NC Contacts
Total Travel - Linear
3.4 mm
Includes Actuator
Actuator Included
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LSM-XL
Zoro #
G023360850
UPC #
786685392448
Country of Origin
Germany

Dimensions

Overall Depth
1.06 in
Overall Height
1.4 in
Arm Length - Minimum
1.35 in
Manufacturer Warranty Length
1 yr
Actuator Length
1.35 in
Roller Diameter
0.51 in
Overall Width
28 in
Roller Width
0.2 in
Arm Length - Maximum
1.35 in
Fits Chest Size
Approved for Global Application, Operating Heads can be Rotated 90 Degrees, Positive Opening NC Contacts

Details

IP Rating
IP66, IP67
Features
Approved for Global Application, Operating Heads can be Rotated 90 Degrees, Positive Opening NC Contacts
Total Travel - Linear
3.4 mm
Item
Limit Switch Head
Includes Actuator
Actuator Included
Roller Adjustability
Fixed
Compatible with Series
LS-Titan
Operating Torque
8.88 in-lb
NEMA Enclosure Rating
1, 13, 3, 3S, 4, 4X, 6, 6P
Plunger Adjustability
Fixed
Arm Adjustability
Fixed
Series
LSM
Operating Temperature - Maximum
158 Degrees F
Compatible with Brand
Eaton
Standards
CE Certified, CE Marked, CSA C22.2 No. 14, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, EN 60947-5, IEC 60947-5, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
Arm Material
Metal
Actuator Style
Hinged Roller-Plunger
Roller Material
Nylon
Operating Force
8 N
Directional Movement
Linear
Roller Position
Top
Compatible Manufacturer Part Number
LSM-02-L, LSM-11S-L, LSM-20A-L
Action
Momentary
Operating Temperature - Minimum
-13 Degrees F
Compatible with Manufacturer Model Number
LSM-02-L, LSM-11S-L, LSM-20A-L
Compatible Manufacturer Model Number
LSM-02-L, LSM-11S-L, LSM-20A-L
Compatible Series
LS-Titan

Description

Limit Switch Head, Actuator Style Hinged Roller-Plunger, Actuator Location Top, Actuator Length 1.35 in, Operating Force 8 N, IP Rating IP66, IP67, Standards CE Certified, CE Marked, CSA C22.2 No. 14, CSA Class No.: 3211-03, CSA File No.: 012528, CSA-C22.2 No. 14, EN 60947-5, IEC 60947-5, IEC/EN 60947-5, UL 508, UL Category Control No.: NKCR, UL File No.: E29184
