Shop EATON

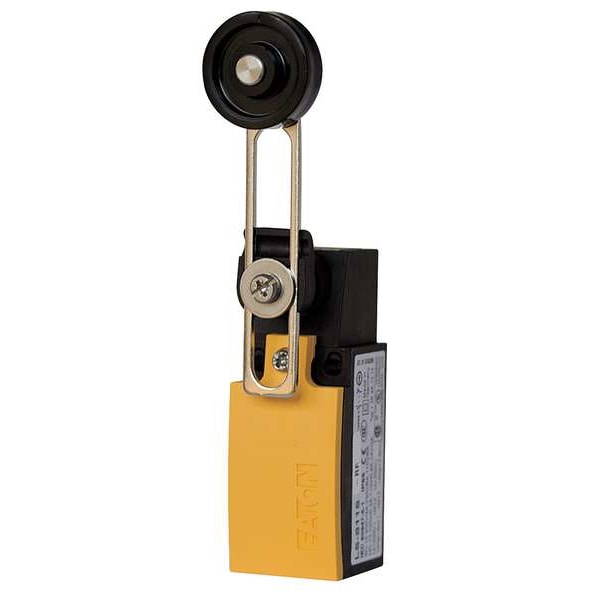

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 400V AC, Actuator Location: Side

  • Mfr # LS-S11S-RLA30
  • Zoro # G6467255
product price:
$
89.59
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 400V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LS-S11S-RLA30
Zoro #
G6467255
UPC #
786685392745
Country of Origin
Germany

Dimensions

Roller Dia.
30.0 mm
Body Height - Limit Switch
2.53 in
Actuator Length
2.34"
Height
2.99"
Depth
1.32"
Body Width - Limit Switch
1.22 in
Body Depth - Limit Switch
1.32 in
Actuator Length - Limit Switch
2.34 in
Width
1.22"
Arm Width
0.2 in
Roller Width
1.18 in
Product Height
4.51 in
Product Width
2.14 in
Roller Diameter
1.18 in
Body Depth
1.32 in
Manufacturer Warranty Length
1 yr
Overall Depth
1.22 in
Mounting Hole Diameter
0.16 in
Body Width
1.22 in
Body Height
2.53 in
Overall Height
4.51 in
Overall Width
2.14 in
Arm Length - Minimum
0.75 in
Arm Length - Maximum
3 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 400V
DC Contact Rating - Limit Switch
Not Rated
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Contact Form
1NO/1NC
Contact Form - Limit Switch
1NC/1NO
Actuator Location (Limit Switch)
Side
Boot Sealed Actuator - Limit Switch
No
Electrical Connection
Screw Terminals
Actuator Style
Roller Lever Plunger
Movement
Horizontal
Amps
4
Operating Force
0.2 N-m
DC Contact Rating
3 A @ 24 V
Series
LS-Titan
Voltage Rating
400VAC
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Limit Switch Style
General Purpose Limit Switch
Actuator Style (Limit Switch)
Rotary, Roller Lever
Basic Actuator Style (Limit Switch)
Rotary
IP Rating
IP66, IP67
Mounting Hole Spacing - Limit Switch
0.87 in
Body Style (Limit Switch)
Miniature
Wiring Entry
M20 Thread
Operating Temp. Range
-13 Degrees to 158 Degrees F
AC Contact Rating
6 A @ 240 V
NEMA Rating
3, 3S, 4X, 6P
Actuator Location
Side
Standards
RoHS, UL Listed
Travel
Operating Travel 55 Degrees , Reset Travel 5 Degrees , Total Travel 65 Degrees
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole - Limit Switch
(2) 0.16 in dia
Arm Material
Metal
Roller Material
Nylon
Certification
UL Listed
Connection Type
Screw terminal
Differential Travel
65 Degrees
Body Material
Polyamide
Weight
.1875 lb
Maximum AC Current
6A
Contact Rating
6A at 240Vac, 3A at 24Vdc
Environmental Rating
IP66, IP67
Contact Configuration
1 NO-1 NC, snap action, positive opening
Operating Temperature - Max
158 °F
Product Name
Eaton LS-Titan miniature DIN limit switch
Maximum DC Current
3A
Type
LS-Titan
Operating Temperature - Min
-13 °F
Switch Type
Adjustable side rotary
Enclosure Material
Polyamide PA66-GF25
Pretravel
55 Degrees
Mounting Style
Surface
Includes Actuator
Actuator Included
Roller Adjustability
Adjustable
Operating Force - Minimum
1 N
Reset Travel
5 Degrees
Directional Movement
CCW/CW
Operating Torque - Maximum
1.77 in-lb
Number of Mounting Holes
2
Body Configuration
Plug-In
Boot Sealed Actuator
No Boot Included
Roller Position
Side
Operating Force - Maximum
8 N
Arm Adjustability
Adjustable
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
3, 3S, 4X, 6P
Action
Momentary/Momentary
Mounting Hole Horizontal Center to Center Distance
22 mm
Total Travel
65 Degrees
Lamp Type
No Lamp Module Included
Plunger Adjustability
Adjustable
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Vertical Center to Center Distance
43 mm

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 4A @ 400V, DC Contact Rating - Limit Switch Not Rated, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 2.34 in, Body Height - Limit Switch 2.53 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.32 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 3, 3S, 4X, 6P
