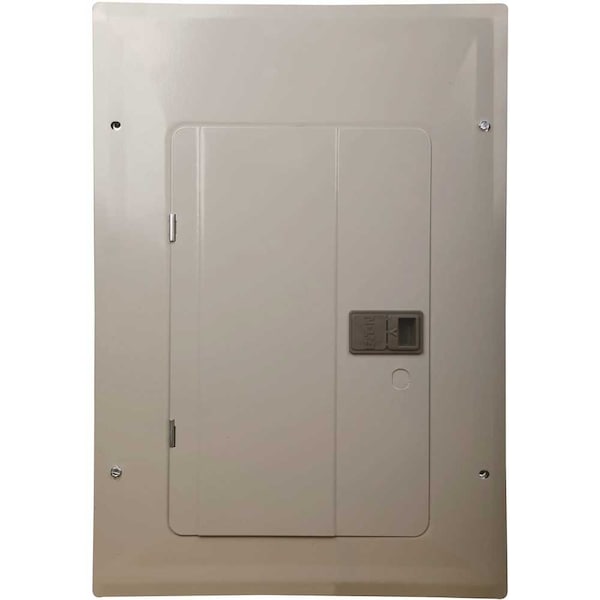

Load Center, 20 Spaces, 100A Amps, 120/240V AC
Mfr # BRP20B100
Zoro # G408580897
CAD Available
product price: $194.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Main Circuit Breaker or Main Lug
Main Circuit Breaker
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Height
3.88 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BRP20B100
Zoro #
G408580897
UPC #
786689053154
Country of Origin
United States
Dimensions
Height
3.88 in
Width
14.31 in
Depth
23 in
Details
Item
Load Center
Main Circuit Breaker or Main Lug
Main Circuit Breaker
Number of Spaces
20
Amps
100A
Voltage
120/240V AC
Phase
1
Short Circuit Current Rating
10kA
Series
BRP
Included Enclosure Cover
Combination
Recommended Flush Cover
Included
Enclosure Material
Metallic
Enclosure NEMA Rating
NEMA 1
Bus Material
Aluminum
CAD Available
Yes
Description
Specially designed for easy installation, Eaton's BR load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. The panels serve as main breaker for service entrances. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
- Amperage rating: 100 Amp
- Bus material: aluminum
- Cover: cover included
- Enclosure: NEMA 1
