Shop EATON

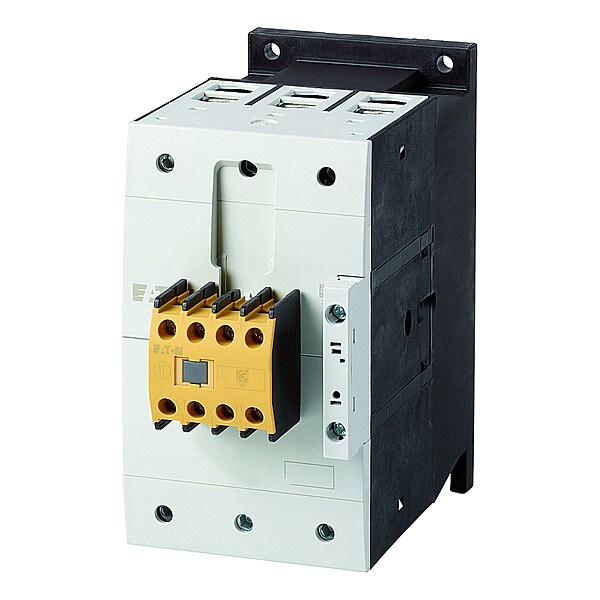

MagContactor, NonReversing, 110-120VAC

  • Mfr # XTSE095F22A

  • Zoro # G810043157

product price:
$
1,423.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
3
Series
XT
Standards
CSA, UL Listed
Auxiliary Contact Form
2NO/2NC
Full Load Current - Resistive
95 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XTSE095F22A
Zoro #
G810043157
UPC #
786689042783
Country of Origin
Germany

Dimensions

Overall Width
6.9 in
Overall Height
3.9 in
Frame Size
F
Overall Depth
7.4 in

Details

Item
Magnetic Contactor
Number of Poles
3
Series
XT
Standards
CSA, UL Listed
Auxiliary Contact Form
2NO/2NC
Full Load Current - Resistive
95 A
Horsepower @ Three Phase - 240V AC
40 hp
Mounting Style
Bolt-on, Panel Mount, DIN Rail
Reversing Capability
Non-Reversing
Horsepower @ Single Phase - 240V AC
Not Rated
Contactor Style
IEC
Horsepower @ Single Phase - 120V AC
Not Rated
Number of Auxillary Contacts
4
Includes Auxiliary Contacts
Yes
Embedded Surge Suppressor
No
Full Load Current - Inductive
95 A
Number of Normally Open Main Contacts
2
Horsepower @ Three Phase - 600V AC
100 hp
Horsepower @ Three Phase - 480V AC
75 hp
NEMA Enclosure Rating
No Enclosure
Frequency
50/60 Hz
Phase
Three
Coil Voltage
110-120V AC
Maximum Voltage Rating
600V AC
Terminal Connection Type
Screw Clamp Terminals
Horsepower @ Three Phase - 208V AC
25 hp
Number of Normally Closed Main Contacts
2
Contact Configuration
2 NO, 2 NC
Frequency Rating
50-60 Hz
Hp Rating - Max
25, 40, 75, 100 hp (3PH @200/208,230/240,460/480,575,600 V)
Frame
FVNR
Certifications
UL Listed; CSA Certified
Amperage Rating
95A
Product Name
Eaton XT IEC contactor
Rated Operational Current
200-600 V

Description

Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 110-120V AC, Number of Poles 3, Full Load Current - Inductive 95 A, Full Load Current - Resistive 95 A, Reversing Capability Non-Reversing, Overall Height 3.9 in, Overall Width 6.9 in, Auxiliary Contact Module Capacity Not Applicable, Terminal Connection Type Screw Clamp Terminals, Frame Size F, Mounting Style Bolt-on, Panel Mount, DIN Rail, Series XT
