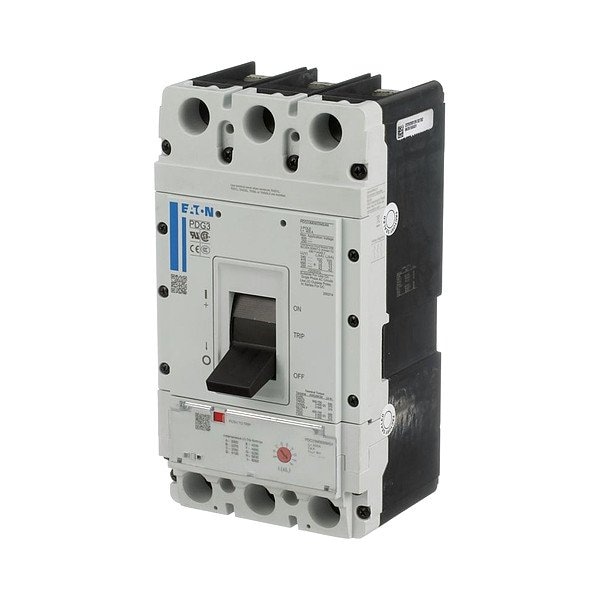

Molded Case Circuit Breaker, 600V AC
Mfr # PDG33MH400MSAJ
Zoro # G722579515
product price:Â
$
5,053.99
/ea
Free Shipping & Returns
Key Features
Height
10.12 in
Max. Operating Temp.
158 Degrees F
Phase
Three
Circuit Breaker Type
Motor Circuit Protector
Frame Size
3
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- PDG33MH400MSAJ
- Zoro #
- G722579515
- UPC #
- 786679374672
- Country of Origin
- Dominican Republic
Dimensions
- Height
- 10.12 in
- Frame Size
- 3
- Width
- 5.47 in
- Depth
- 4.3 in
Details
- Max. Operating Temp.
- 158 Degrees F
- Item
- Molded Case Circuit Breaker
- Phase
- Three
- Circuit Breaker Type
- Motor Circuit Protector
- Standards
- CCC Marked, CSA Certified, IEC 60947-2, RoHS Compliant, UL 489
- Phase Connection
- ABC
- For Use With
- Motor Starters
- Amps
- 400 A
- Instantaneous Trip
- Instantaneous
- Number of Poles
- 3
- Terminal Connection
- Line/Load Lug
- High Amp Trip Setting
- 400 A
- Max. AIR Rating
- 65kA at 480V AC
- Low Amp Trip Setting
- 400 A
- AC Voltage Rating
- 600V AC
Description
Molded Case Circuit Breaker, 400 A Amps, AC Voltage Rating 600V AC, Max. AIR Rating 65kA at 480V AC, For Use With Motor Starters, High Amp Trip Setting 400 A, Low Amp Trip Setting 400 A, Circuit Breaker Type Motor Circuit Protector, Number of Poles 3, Terminal Connection Line/Load Lug, Trip Type Thermal Magnetic, Phase Three, Instantaneous Trip Instantaneous, Phase Connection ABC, Frame Size 3, Height 10.12 in, Width 5.47 in, Depth 4.3 in, Max. Operating Temp. 158 Degrees F
