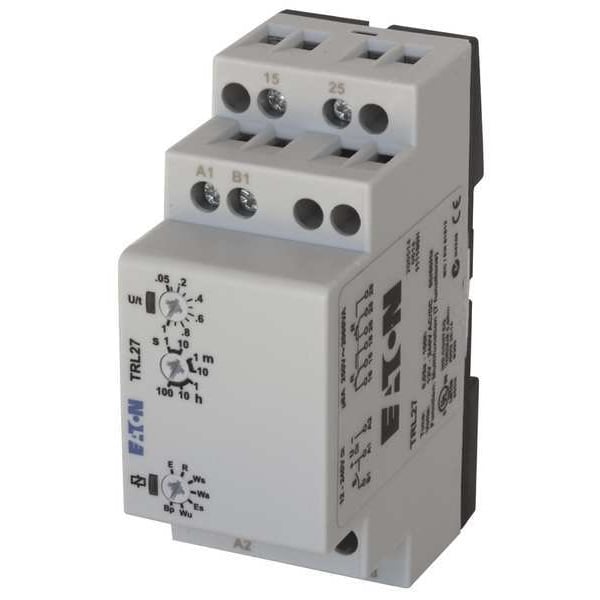

Multifunction Time Delay Relay, Square, 6 Functions 12 to 240V AC/DC, DPDT
Mfr # TRL27
Zoro # G7152652
CAD Available
product price: $126.99
/ea
Free Shipping & Returns
Key Features
CAD Drawing
Delay Function
Flasher Pause First, On Delay Control Signal Start, On/Off Delay, Power Triggered, Single Shot Leading or Trailing Edge Voltage Controlled and Control Input, Trailing Edge Off
Number of Delay Functions
6
Minimum Time Setting
0.05 sec
Maximum Time Setting
100 hr
Base Shape
Square
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
TRL27
Zoro #
G7152652
UPC #
786685313597
Country of Origin
Austria
Dimensions
Overall Height - Relay
3.43 in
Depth
2.56 in
Body Width
1.38 in
Overall Depth
3.43 in
Body Depth
2.36 in
Body Height
3.43 in
Description
Multi-Function Time Delay Relay, Adjustment Method Rotary Dip Switch, Base Shape Square, Coil Voltage 12 to 240V AC/DC, Contact Form DPDT, Contact Rating (AC) 8 A @ 250V, Current Rating 8 A, Number of Delay Functions 6, Delay Function Flasher Pause First, On Delay Control Signal Start, On/Off Delay, Power Triggered, Single Shot Leading or Trailing Edge Voltage Controlled and Control Input, Trailing Edge Off, Electrical Connection Screw Clamp, IP Rating IP40, Input Voltage 24 to 240V AC/DC
