  15. Mushroom Head, 30mm, Black, Metal

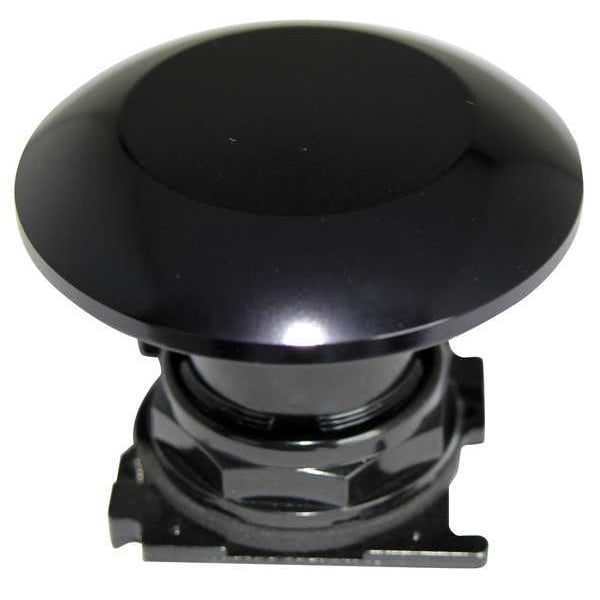

Eaton Mushroom Head, 30mm, Black, Metal E34JB1 - main

Mushroom Head, 30mm, Black, Metal

  • Mfr # E34JB1

  • Zoro # G5220363

product price: $109.99
/ea
Free Shipping & Returns

Key Features

Color
Black
Size
30 mm
Operator Size
1.58 in dia
Basic Material
Metal
For Use With
Eaton Contact Blocks
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34JB1
Zoro #
G5220363
UPC #
786680126789
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Operator Size
1.58 in dia
Product Width
2 in
Product Length/Depth
2.4 in
Product Height
3.3 in
Panel Cutout Diameter
30 mm
Manufacturer Warranty Length
1 yr
Overall Height
3.3 in
Overall Width
2 in
Overall Depth
2.4 in
Mushroom Head Diameter
65 mm

Details

Item
Mushroom Head Push Button
Color
Black
Basic Material
Metal
For Use With
Eaton Contact Blocks
Standards
CE, CSA, FDA 3-A, UL 505, UL Listed
Head Material
Metal
IP Rating
IP65
NEMA Rating
1, 12, 3, 4
Illuminated / Non-Illuminated
Non-Illuminated
Features
Drainage Holes, Grounding Nibs
Product Type
Push Button Operators
Action
Momentary
Type
Pushbutton
Number of Operators
1
Bezel
Black
Bezel Material
Metal
Terminal Connection
Screw Clamp
Illumination
Non-illuminated
Operating Mode
Momentary
Rating
NEMA 4
Actuator color
Black
Series
E34
Actuator material
Anodized aluminum
Certifications
UL Listed
Compliances
CE Marked
Degree of protection
NEMA 3
Actuator
Jumbo mushroom
Product Name
Eaton E34 pushbutton
Operator Material
Aluminum
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
32 Degrees F
Hazardous Location Specification
Class I, Div 2, Group B, C, D
Resistance Properties
Chemical Resistant, Corrosion Resistant
Push Button Style
Mushroom Head
Number of Indicator Lights
0
Head Color
Black
Operator Illumination
Non-Illuminated
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X

Description

Mushroom Head Push Button, 30 mm, Momentary, Basic Material Metal, Head Material Metal, Bezel Material Metal, Color Black, NEMA Rating 1, 12, 3, 4, IP Rating IP65, Standards CE, CSA, FDA 3-A, UL 505, UL Listed, Features Drainage Holes, Grounding Nibs
