  15. Non-ill Mom Pb Sil-bzl Flat Red, 22.5 mm, Red

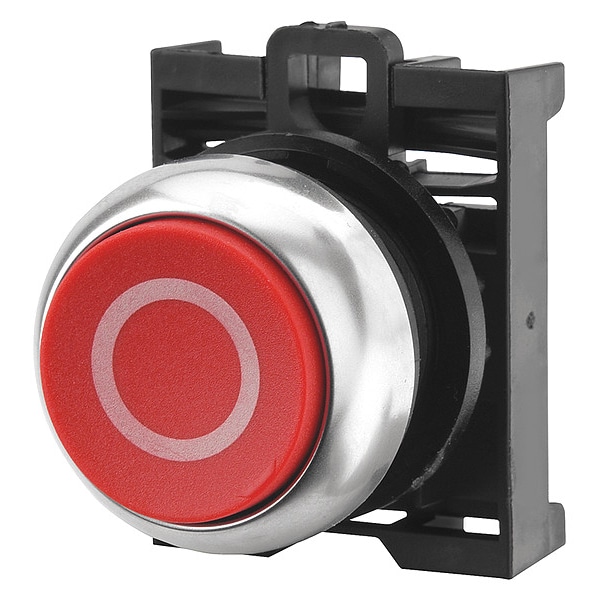

Eaton Non-ill Mom Pb Sil-bzl Flat Red, 22.5 mm, Red M22-D-R-X0 - main

Non-ill Mom Pb Sil-bzl Flat Red, 22.5 mm, Red

  • Mfr # M22-D-R-X0

  • Zoro # G3634098

product price: $10.69
/ea

Key Features

Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Panel Cutout Diameter
22 mm
Head Color
Red
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M22-D-R-X0
Zoro #
G3634098
UPC #
786685275925
Country of Origin
Germany

Dimensions

Panel Cutout Diameter
22 mm
Size
22.5 mm
Product Width
2 in
Product Height
1 in
Product Length/Depth
2 in
Overall Height
1 in
Overall Width
1 in
Manufacturer Warranty Length
1 yr
Overall Depth
2 in

Details

Item
Push Button Operator
Push Button Style
Flush
Action
Momentary
Operator Illumination
Non-Illuminated
Head Color
Red
Head Material
Plastic
Terminal Connection
Screw Clamp
Standards
Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed
IP Rating
IP67, IP69K
Bezel Material
Silver
Number of Operators
1
Legend
O
Color
Red
Series
M22
Type
Pushbutton
NEMA Rating
4X
Bezel
Silver
Features
Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
Product Type
Push Button Operators
Environmental rating
IP67, IP69K, NEMA 4X, NEMA 13
Actuator Color
Black
Actuator
Flush, button
Operating cycles
5 million
Degree of protection
NEMA 13
Button color
Black
Actuator function
Momentary
Illumination
Non-illuminated
Compliances
GoST-R
Operating mode
Momentary
Mounting method
Flush
Certifications
CSA Certified
Inscription
O
Product Name
Eaton M22 modular pushbutton
Number of Indicator Lights
0
Operating Temperature - Minimum
-13 Degrees F
Resistance Properties
Corrosion Resistant
Hazardous Location Specification
Not Rated
Operating Temperature - Maximum
158 Degrees F
Operator Material
Polycarbonate
NEMA Enclosure Rating
1, 12, 13, 2, 3, 3R, 4, 4X

Description

Flush Push Button, 22.5 mm, Momentary, Head Material Plastic, Bezel Material Silver, Color Red, NEMA Rating 4X, IP Rating IP67, IP69K, Legend O, Standards Bureau Veritas, CCC, CE, CSA, GOST-R, Lloyd's Register, UL Listed, Features Field Convertible From Momentary to Maintained, Includes Contact Block Mounting Adapter
