Shop NSI TORK

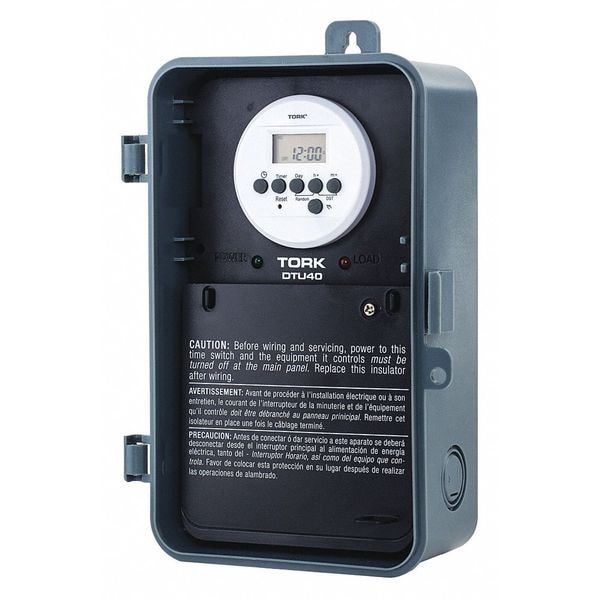

Electromechanical Timer, 120 to 277VAC

  • Mfr # DTU40

  • Zoro # G0992560

product price:
$
124.99
/ea
Free Shipping & Returns

Key Features

Operation Mode
8 Days
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor/Outdoor
Voltage
120 to 277V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
DTU40
Zoro #
G0992560
UPC #
786261240040
Country of Origin
China

Dimensions

Height
8 1/2 in
Depth
3 1/2 in
Width
5 in
Overall Height
8 1/2 in
Overall Width
5 in
Overall Depth
3 1/2 in

Details

Item
Electromechanical Timer
Operation Mode
8 Days
Number of Channels
1
Time Minimum Setting
2 min
Indoor/Outdoor Usage
Indoor/Outdoor
Voltage
120 to 277V AC
Body Material
Plastic
Contact Form
DPDT
Amps
30 A
HP @ 120V
Not Rated
HP @ 240V
Not Rated
Events Available - Electronic Timer
14
Available Actions - Electronic Timer
On/Off
NEMA Rating
3R
Max. Time Setting
14 hr
Description/Special Features
Random On/Off Operations
Contact HP @ 240V
2
Type
24 hr.
Nominal Max. Time Setting
7 days
Max. On/Off Cycles
7
Time Setting Range
1 hr. to 23 hr.
Contact HP @ 120V
1
Enclosure Type
Polycarbonate Indoor/Outdoor
Mount
Surface
Day Skipper
No
Standards
CSA, UL Listed
Min. Time Setting
1 min
Number of Poles
2
Finish
Unfinished
Operating Temp.
-31 Degrees to 116 Degrees F
Number of Trippers Included
0
Event Allocation - Electronic Timer
1 On/Off Action = 2 Events
Enclosure
Plastic
Features
Multivoltage
Mounting
Screw Mount
Backup Device
Battery
Hz - Electrical
50-60 Hz
Application
HVAC, Fans, Lighting, Pump Controls, Water Heaters
NEMA Enclosure Rating
3R
AC Voltage Rating
120/208-240/277V AC
Current Rating - Maximum
30 A
Horsepower @ 240V - Maximum
2 hp
Time Setting - Minimum
1 min
Astronomic Functionality
No
Events Available
14
Body Color
Grey
Mounting Style
Surface
Horsepower @ 120V - Maximum
1 hp
Time Setting - Maximum
7 day
Operating Temperature - Maximum
116 Degrees F
Timer Functions
On/Off
Operating Temperature - Minimum
-31 Degrees F
Series
DTU
Compatible Lighting
Fluorescent, Incandescent, LED
Time Maximum Setting
8 day

Description

Electronic Timer, Operation Mode 7 Days, Number of Channels 1, Contact Form DPDT, Voltage 120 to 277V AC, Amps 30 A, HP @ 120V Not Rated, HP @ 240V Not Rated, Events Available - Electronic Timer 14, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Plastic, Number of Poles 2, Min. Time Setting 1 min, Max. Time Setting 14 hr, NEMA Rating 3R, Backup Device Battery, Operating Temp. -31 Degrees to 116 Degrees F, Height 8 1/2 in
