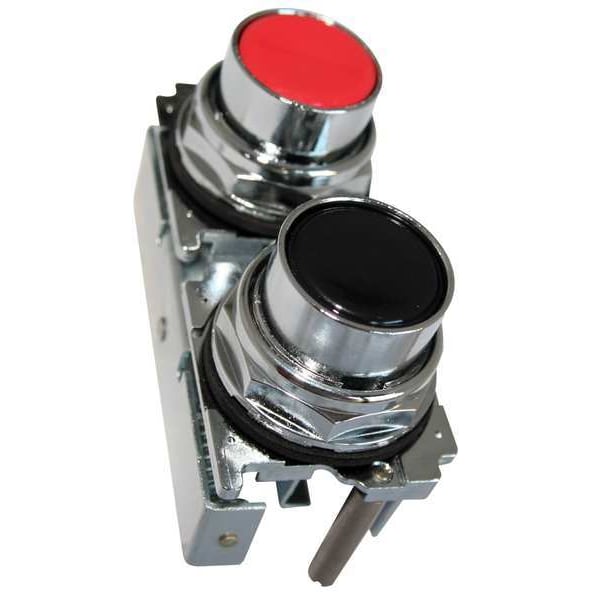

Eaton Pendant Pushbutton, 30mm, Flush/Extended 10250TA67 - main

Pendant Pushbutton, 30mm, Flush/Extended

  • Mfr # 10250TA67

  • Zoro # G5268331

product price: $200.99
/ea
Free Shipping & Returns

Key Features

Color
Black/Red
Mechanical Interlock
Yes
Standards
CE, CSA, UL Listed
NEMA Rating
12, 13, 3, 3R, 4, 4X
Action
Maintained/Maintained
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250TA67
Zoro #
G5268331
UPC #
786680124372
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
3.2 in
Product Length/Depth
4.2 in
Product Width
3.1 in
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Height
3.2 in
Overall Depth
4.2 in
Overall Width
3.1 in

Details

Item
Pendant Push Button
Color
Black/Red
Mechanical Interlock
Yes
Standards
CE, CSA, UL Listed
NEMA Rating
12, 13, 3, 3R, 4, 4X
Action
Maintained/Maintained
Head Material
Metal
IP Rating
IP65
Contact Rating
10A @ 600V AC/DC
Type of Operator
Flush Button/Extended Button
Number of Operators
2
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Terminal Connection
Screw Clamp
Bezel Material
Chrome Plated Zinc Die Cast
Bezel
Chrome
Type
30.5 mm, Heavy-Duty
Actuator material
Plastic
Operating Mode
Maintained
Illumination
Non-illuminated
Actuator
Mechanically interlocked, extended
Actuator color
Black, red
Certifications
UL Listed
Mounting method
Flush
Compliances
CE Marked
Series
10250T
Rating
NEMA 4
Push Button Style
Extended, Flush
Product Type
Push Button Operators
Operating Temperature - Maximum
150 Degrees F
Operator Illumination
Non-Illuminated
Maintained Action Release
Push/Push
Number of Indicator Lights
0
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Head Color
Black, Red
Resistance Properties
Oil and Grease Resistant, Watertight
Operating Temperature - Minimum
1 Degrees F
Operator Material
Metal

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Extended Button, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Black/Red, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
