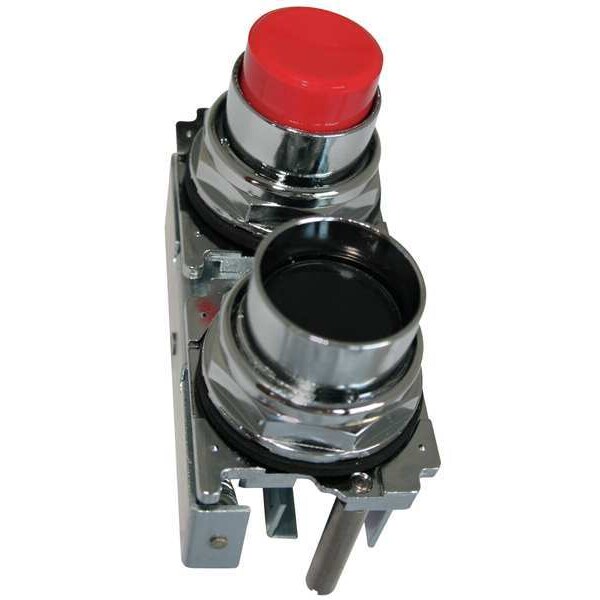

Eaton Pendant Pushbutton, 30mm, Flush/Extended 10250TA73 - main

Pendant Pushbutton, 30mm, Flush/Extended

  • Mfr # 10250TA73

  • Zoro # G5228221

product price: $176.99
/ea
Free Shipping & Returns

Key Features

Color
Black/Red
Mechanical Interlock
Yes
Size
30 mm
Standards
CE, CSA, UL Listed
Number of Operators
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250TA73
Zoro #
G5228221
UPC #
786680124426
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Length/Depth
1 in
Product Height
1 in
Product Width
1 in
Manufacturer Warranty Length
1 yr
Overall Height
1 in
Panel Cutout Diameter
30 mm
Overall Depth
1 in
Overall Width
1 in

Details

Item
Pendant Push Button
Color
Black/Red
Mechanical Interlock
Yes
Standards
CE, CSA, UL Listed
Number of Operators
2
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
Contact Rating
10A @ 600V AC/DC
Action
Maintained/Maintained
Head Material
Metal
IP Rating
IP65
Type of Operator
Flush Button/Extended Button
NEMA Rating
12, 13, 3, 3R, 4, 4X
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Type
Mechanically interlocked
Bezel Material
Chrome Plated Zinc Die Cast
Terminal Connection
Screw Clamp
Series
10250T
Rating
NEMA 12
Compliances
CE Marked
Certifications
UL Listed
Product Name
Eaton 10250T pushbutton operator
Resistance Properties
Oil and Grease Resistant, Watertight
Product Type
Push Button Operators
Operating Temperature - Minimum
1 Degrees F
Maintained Action Release
Push/Push
Head Color
Black, Red
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Number of Indicator Lights
0
Operator Illumination
Non-Illuminated
Operating Temperature - Maximum
150 Degrees F
Push Button Style
Extended
Operator Material
Plastic

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Extended Button, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Black/Red, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
