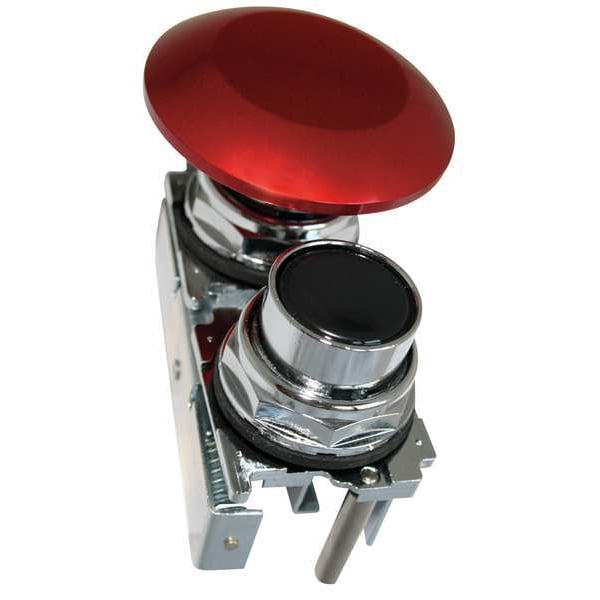

Eaton Pendant Pushbutton, 30mm, Flush/Mushroom 10250TA76 - main

Pendant Pushbutton, 30mm, Flush/Mushroom

  • Mfr # 10250TA76

  • Zoro # G5227467

product price: $265.99
/ea
Free Shipping & Returns

Key Features

Color
Black/Red
Size
30 mm
Contact Rating
10A @ 600V AC/DC
Mechanical Interlock
Yes
NEMA Rating
12, 13, 3, 3R, 4, 4X
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
10250TA76
Zoro #
G5227467
UPC #
786680124440
Country of Origin
Dominican Republic

Dimensions

Size
30 mm
Product Height
3.3 in
Product Width
3.2 in
Product Length/Depth
4.3 in
Mushroom Head Diameter
65 mm
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm
Overall Height
3.3 in
Overall Width
3.2 in
Overall Depth
4.3 in

Details

Item
Pendant Push Button
Color
Black/Red
Contact Rating
10A @ 600V AC/DC
Mechanical Interlock
Yes
NEMA Rating
12, 13, 3, 3R, 4, 4X
Standards
CE, CSA, UL Listed
Action
Maintained/Maintained
Head Material
Metal
For Use With
30.5 mm Heavy-Duty Watertight/Oiltight-10250T
Number of Operators
2
IP Rating
IP65
Type of Operator
Flush Button/Mushroom
Features
Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
Bezel Material
Chrome Plated Zinc Die Cast
Terminal Connection
Screw Clamp
Type
Mechanically interlocked
Certifications
CSA Certified
Actuator color
Black, red
Rating
NEMA 3
Series
10250T
Compliances
CE Marked
Product Name
Eaton 10250T pushbutton operator
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X
Head Color
Black, Red
Number of Indicator Lights
0
Push Button Style
Flush, Mushroom Head
Operating Temperature - Minimum
1 Degrees F
Operator Illumination
Non-Illuminated
Resistance Properties
Oil and Grease Resistant, Watertight
Product Type
Push Button Operators
Operating Temperature - Maximum
150 Degrees F
Operator Material
Plastic
Maintained Action Release
Push/Pull

Description

Pendant Push Button, 30 mm, Maintained/Maintained, Type of Operator Flush Button/Mushroom, Head Material Metal, Bezel Material Chrome Plated Zinc Die Cast, Color Black/Red, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Standards CE, CSA, UL Listed, Features Diaphragm Seals, Drainage Holes, Enclosed Silver Contacts, Grounding Nibs, Reliability Nibs
