  11. Polarized Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN and PNP

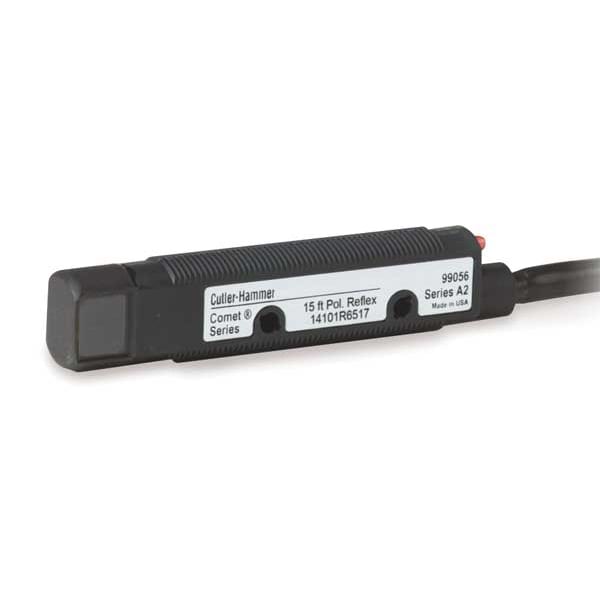

Eaton Polarized Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN and PNP 14101R6517 - main

Polarized Retroreflective Photoelectric Sensor, Bare Wire, Right Angle, Cylindrical, Selectable Light On/Dark On, NPN and PNP

  • Mfr # 14101R6517

  • Zoro # G2626434

product price: $186.99
/ea
Free Shipping & Returns

Key Features

Width
4.01"
Depth
0.47"
Response Time
1 msec
Length - Cylindrical Photoelectric Sensor
76 mm
IP Rating
IP69K
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
14101R6517
Zoro #
G2626434
UPC #
-
Country of Origin
Mexico

Dimensions

Width
4.01"
Depth
0.47"
Length - Cylindrical Photoelectric Sensor
76 mm
Diameter - Cylindrical Photoelectric Sensor
18 mm
Diameter
18mm
Min. Object Size
Adjustable By Changing Gain
Length
3.00"
Cable Length
2 m
Overall Height
18 mm
Product Width
.47 in
Product Height
.71 in
Product Length/Depth
3 in
Overall Width
12 mm
Overall Diameter
18 mm
Sensor Diameter
18 mm
Overall Depth
76 mm

Details

Item
Photoelectric Sensor
Response Time
1 msec
IP Rating
IP69K
Power Requirement - Cylindrical Photoelectric Sensor
15 to 30V DC
Light Source
Red LED
Power Requirement
15 to 30VDC
Body Material
Polyurethane
Operating Temp. Range
-40 Degrees to 70 Degrees C
Operating Frequency
500 Hz
Features
Auto Reset Short Circuit
Max. Sensing Distance
3m
Max. Load Current
250 mA
Max. Sensing Distance - Cylindrical Photoelectric Sensor
3 m
Standards
cUL Recognized, UL Listed
Response Time (ms)
1
Electrical Connection
Bare Wire
Sensing Method
Polarized Retroreflective
Cable type
Polyvinyl Chloride (PVC)
LED indicator
Output ON
Contact Rating
100 mA PNP, 250 mA NPN at 10-30 Vdc
Enclosure Material
Polyurethane foam (RIM)
Protection
Auto reset short circuit
Type
Photoelectric Sensor
Maximum DC current
100 mA PNP, 250 mA NPN
Contact configuration
NPN and PNP open collector
Input voltage
10-30 Vdc
DC Voltage Rating
10-30V DC
Load Current - Maximum
250 mA
Includes Indicator Lights
Indicator Lights Included
Series
Comet
Switching Frequency
500 Hz
Output Circuit Type
NPN and PNP
Style
Cylindrical
Orientation
Right Angle
Operating Temperature - Maximum
158 Degrees F
Sensing Distance - Maximum
3 m
Operating Temperature - Minimum
-40 Degrees F
Emitted Sensor Light
Infrared
Operating Mode
Selectable Light On/Dark On
NEMA Enclosure Rating
1, 12, 13, 3, 4, 4X, 6
Electrical Installation Type
Prewired Cable
Sensing Distance - Minimum
30 mm

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 15 to 30V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor NPN/PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 3 m
