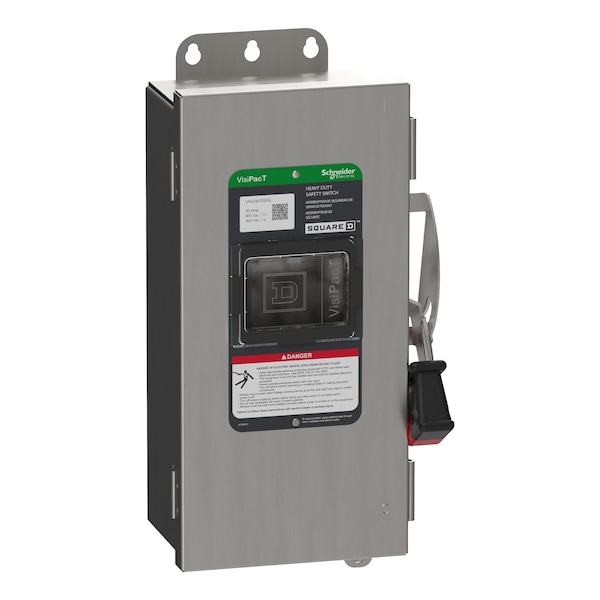

Schneider Electric Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel VHU361DSGL - main

Safety Switch, Nonfusible, 3PST, Three Phase, NEMA 4X, Indoor/Outdoor, 18-8 Stainless Steel

  • Mfr # VHU361DSGL

  • Zoro # G509691324

CAD Available
product price:  $1,511.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor/Outdoor
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VHU361DSGL
Zoro #
G509691324
UPC #
3606485894539
Country of Origin
Korea, Republic of

Dimensions

Width
7 1/4 in
Depth
5 3/8 in
Height
14 7/8 in
Maximum Enclosure Depth
5.38 in

Details

Item
Safety Switch
Protection Method
Nonfusible
Contact Form
3PST
Current Rating
30 A
Phase
Three
Environment
Indoor/Outdoor
Enclosure Type
NEMA 4X
HP
30 HP
Voltage
600 V
Handle Color
Black/Red
Housing Material
18-8 Stainless Steel
Standards
EU RoHS, UL Listed file E2875
Amps
30 A
Duty
Heavy Duty
Includes
Dual Cover Interlock
Number of Poles
3
Neutral Assembly Included
No
IP Rating
IP52
Number of Wires
3
Mounting Style
Surface Mount
Features
Quick Make/Break Operating Mechanism, Viewing Window
Horsepower @ 480V AC
20 hp
NEMA Enclosure Rating
4X
Horsepower @ 600V AC
30 hp
Series
F
Fuse Kit (Class R)
Mfr. No. RFK03L
Horsepower @ 240V AC
10 hp
Resistance Properties
Corrosion-Resistant
Compatible with Manufacturer Model Number
RFK03L
Includes Interlocked Receptacle
Yes
Number of Locks
2
Compatible Manufacturer Part Number
RFK03L
Compatible Manufacturer Model Number
RFK03L
For Use With Mfr. Model Number
RFK03L
Series Name
heavy duty
Product Certifications
UL listed file E2875
Device Composition
field installed kit available
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Electrical Connection
lugs
Tightening Torque
45-45 lbf.in 13.3-13.3 mm² (AWG 6) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Device Application
heavy application
Product Or Component Type
Single Throw Safety Switch
Device Mounting
surface
Disconnector Device Type
non-fusible disconnect
Wiring Configuration
3-wire
Compatible with Manufacturer Model No.
RFK03L
Compatible with Mfr. Model No.
RFK03L
For Use with Mfr Model Number
RFK03L
Compatible Pump Manufacturer Part Number
RFK03L
Compatible Mfr. Model Number
RFK03L
CAD Available
Yes
For Manufacturer Part Number
RFK03L

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03L, Contact Form 3PST, Current Rating 30 A, Depth 5 3/8 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor/Outdoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Not Applicable, Fuse Kit (Class R) Mfr. No. RFK03L, Handle Color Black/Red, Height 14 7/8 in, Horsepower @ 240V AC 10 hp, Horsepower @ 480V AC 20 hp, Horsepower @ 600V AC 30 hp, Housing Material 304 Stainless Steel
