Shop EATON

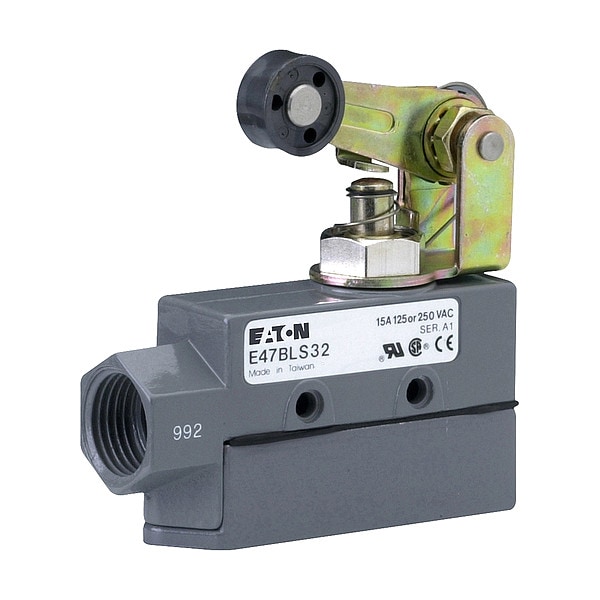

Snap Action Switch, Aluminum, Nylon

  • Mfr # E47BLS32
  • Zoro # G013321823
product price:
$
116.99
/ea
Free Shipping & Returns

Key Features

Release Force
20.11 ozf
Includes
Roller Lever
Center Mounting Hole Distance
1 in
AC Contact Rating
15 A @ 250 V
Overall Height
3.66 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BLS32
Zoro #
G013321823
UPC #
782113771168
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
3.66 in
Overall Width
1 in
Overall Depth
3.39 in
Manufacturer Warranty Length
1 yr
Lever Actuator Length
1.56 in
Roller Width
0.32 in
Roller Diameter
0.75 in
Actuator Length
1.56 in
Arm Length - Maximum
1.56 in
Mounting Hole Diameter
4.32 mm

Details

Item
Snap Action Switch
Release Force
20.11 ozf
Includes
Roller Lever
Center Mounting Hole Distance
1 in
AC Contact Rating
15 A @ 250 V
Pretravel
0.016 in
Operating Force - Minimum
1.67 N
DC Contact Rating
6 A @ 30 V
Operating Temperature - Maximum
176 Degrees F
Standards
CSA, UL Listed
Actuator Style
Hinged Roller-Plunger
Contact Form
1NO/1NC
Series
E47
Electrical Connection
Screw Terminal
Body Material
Aluminum
Operating Force - Maximum
5.59 N
Operating Temperature - Minimum
-13 Degrees F
Overtravel
0.236 in
Roller Adjustability
Fixed
Roller Position
Top
Roller Material
Nylon
Differential Travel - Maximum
0.016 in
IP Rating
IP23
Differential Travel - Linear
0.016 in
Mounting Style
Surface
Pre-Travel - Linear
0.016 in
Switch Structure
SPDT
Over Travel - Linear
0.236 in
Body Configuration
Non Plug-In
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
1 in
Action
Momentary
NEMA Enclosure Rating
1
Number of Mounting Holes
2
Includes Actuator
Actuator Included
Boot Sealed Actuator
No Boot Included

Description

Snap Action Switch, Series E47
