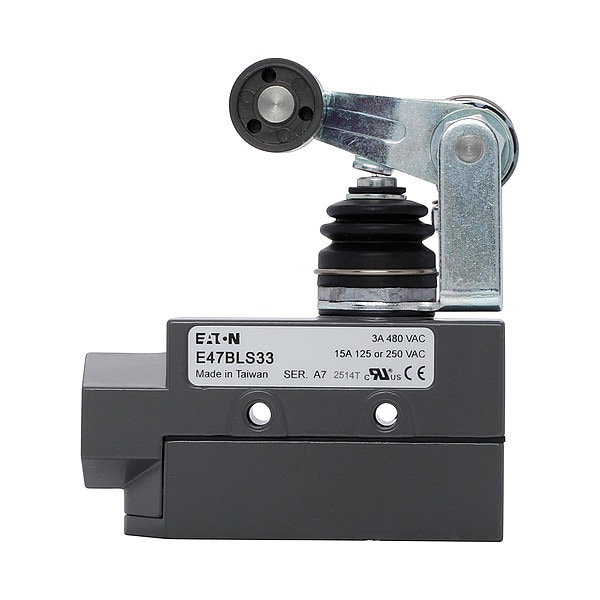

Snap Action Switch, Aluminum, Nylon

  • Mfr # E47BLS33D
  • Zoro # G913321787
product price:
$
144.99
/ea
Free Shipping & Returns

Key Features

Pretravel
0.016 in
Overall Depth
3.39 in
AC Contact Rating
15 A @ 250 V
Release Force
22.58 ozf
Center Mounting Hole Distance
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
E47BLS33D
Zoro #
G913321787
UPC #
782114111185
Country of Origin
Taiwan, Province of China
Item
Snap Action Switch
Pretravel
0.016 in
AC Contact Rating
15 A @ 250 V
Release Force
22.58 ozf
Center Mounting Hole Distance
1 in
Body Material
Aluminum
Actuator Style
Hinged Roller-Plunger
Standards
CSA, RoHS, UL Listed
Contact Form
1NO/1NC
DC Contact Rating
6 A @ 30 V
Series
E47
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
6.28 N
Includes
Booted Roller Lever
Operating Temperature - Maximum
176 Degrees F
Operating Force - Minimum
2.26 N
Electrical Connection
Screw Terminal
Overtravel
0.236 in
Roller Position
Top
Roller Material
Nylon
Roller Adjustability
Fixed
Differential Travel - Maximum
0.016 in
IP Rating
IP23
Includes Actuator
Actuator Included
Boot Sealed Actuator
Boot Included
Body Configuration
Non Plug-In
Pre-Travel - Linear
0.016 in
Directional Movement
Linear
NEMA Enclosure Rating
1
Differential Travel - Linear
0.016 in
Mounting Hole Horizontal Center to Center Distance
1 in
Action
Momentary
Switch Structure
SPDT
Mounting Style
Surface
Number of Mounting Holes
2
Over Travel - Linear
0.236 in

Dimensions

Overall Depth
3.39 in
Manufacturer Warranty Length
1 yr
Overall Height
4 in
Overall Width
1 in
Lever Actuator Length
1.56 in
Roller Width
0.32 in
Roller Diameter
0.75 in
Actuator Length
1.56 in
Mounting Hole Diameter
4.32 mm
Arm Length - Maximum
1.56 in

Description

Snap Action Switch, Series E47
