Shop EATON

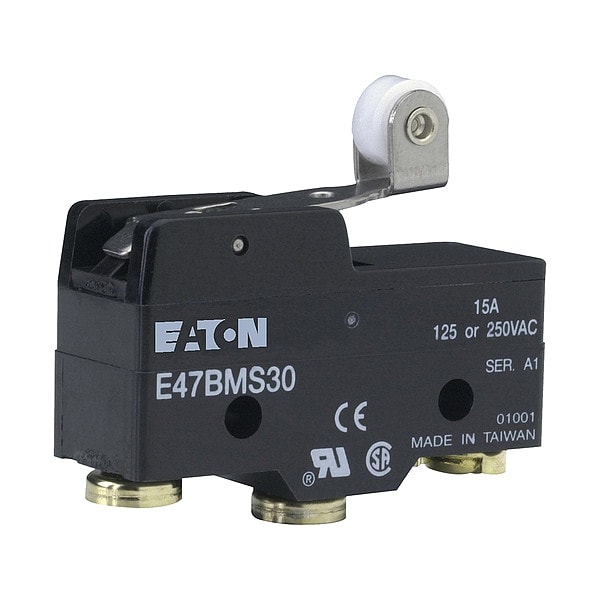

Snap Action Switch, Thermoplastic, Nylon

  • Mfr # E47BMS30

  • Zoro # G013321847

product price:  $34.15
/ea

Key Features

Operating Temperature - Maximum
176 Degrees F
Includes
Roller Lever
Center Mounting Hole Distance
1 in
AC Contact Rating
15 A @ 250 V
Body Material
Thermoplastic
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
E47BMS30
Zoro #
G013321847
UPC #
782113771021
Country of Origin
Taiwan, Province of China

Dimensions

Overall Height
1.78 in
Overall Width
0.69 in
Overall Depth
1.94 in
Manufacturer Warranty Length
1 yr
Roller Diameter
0.75 in
Roller Width
0.16 in
Lever Actuator Length
1.03 in
Mounting Hole Diameter
3/16 in

Details

Item
Snap Action Switch
Operating Temperature - Maximum
176 Degrees F
Includes
Roller Lever
Center Mounting Hole Distance
1 in
AC Contact Rating
15 A @ 250 V
Body Material
Thermoplastic
Release Force
1.48 ozf
Series
E47
Operating Temperature - Minimum
-13 Degrees F
Contact Form
1NO/1NC
Actuator Style
Roller-Lever Plunger
Standards
CSA, UL Listed
Electrical Connection
Screw Terminal
Operating Force - Minimum
0.41 N
Operating Force - Maximum
1.57 N
DC Contact Rating
6 A @ 30 V DC
Pretravel
0.016 in
Roller Position
Top
Differential Travel - Maximum
0.02 in
Roller Material
Nylon
Roller Adjustability
Fixed
Overtravel
0.094 in
Over Travel - Linear
0.094 in
Pre-Travel - Linear
0.016 in
IP Rating
IP23
Mounting Hole Horizontal Center to Center Distance
1 in
Mounting Style
Surface
Switch Structure
SPDT

Description

Snap Action Switch, Series E47
