Shop EATON

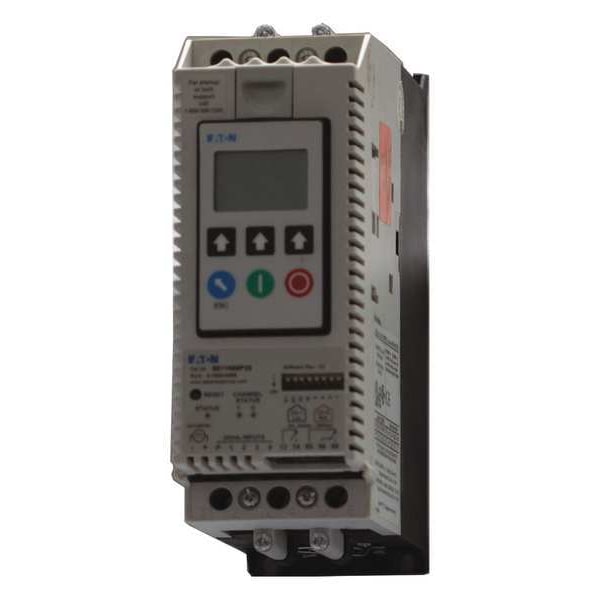

Soft Starter, 37A, 0 to 600VAC, 3 Phase

  • Mfr # S811+N37N3S
  • Zoro # G0315957
product price:
$
3,128.99
/ea
Free Shipping & Returns

Key Features

HP @ 3 Phase - 240V
10 hp
Control Voltage
24V DC
Output Voltage
600V AC
IP Rating
20
HP @ 3 Phase - 208V
10 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S811+N37N3S
Zoro #
G0315957
UPC #
786685558899
Country of Origin
Dominican Republic
HP @ 3 Phase - 240V
10 hp
Control Voltage
24V DC
Output Voltage
600V AC
IP Rating
20
HP @ 3 Phase - 208V
10 hp
Stop Time
0 to 60 sec
Enclosure Rating
NEMA 1
Input Voltage
600V AC
Output Current
37 A
Protects
Motor Overload, Jam, Stall, Pole Over Temperature, Phase Loss, Phase Imbalance, Ability to Alarm Without Tripping for Critical Situations, Ability for Advance Communications for Critical Load Monitoring
HP @ 3 Phase - 575V
30 hp
Phase
Three
Includes
IT Technology, Internal Bypass Contactors, Lugs
Standards
CSA 22.2-14-1995, GB14048, IEC/EN 60947-4-2, UL 508
Inputs/Outputs
Analog Input, (3) 6A Relay Outputs, (9) Function Based Digital Inputs/Outputs
HP @ 3 Phase - 480V
20 hp
Ramp Time
0 to 180 sec.
Frequency
60/50 Hz
Starting Torque
0% to 83%
Start Type
Exclusive Patented Intelligent Technology, Reduced Voltage Starting, Available with Kick Start, Torque Control or Current Limit
Item
Soft Start
With Bypass / No Bypass
With Bypass
Communication Port
Modbus RTU
Application
Constant and Variable Torque
HP @ 3 Phase - 460V
20 hp
HP @ 3 Phase - 230V
10 hp
Output Power
10 hp @ 3 Phase, 200V AC, 10 hp @ 3 Phase, 240V AC, 20 hp @ 3 Phase, 480V AC, 30 hp @ 3 Phase, 575V AC
Function Type
Start/Stop
Type
Digital Keypad Control
Number of Inputs - Analog
1
Number of Inputs - Digital
9
Ramp Time - Maximum
180 sec
Includes Communication Port
Yes
Communication Protocols Supported
Modbus RTU
Output Power @ Three-Phase - 460V
20 hp
Number of Outputs - Relay
3
Stop Time - Maximum
60 sec
Bypass Design
With Bypass
Number of Outputs - Digital
9
Output Power @ Three-Phase - 575V
30 hp
Product Type
Soft Start
Ramp Time - Minimum
0 sec
Output Power @ Three-Phase - 240V
10 hp
Output Power @ Three-Phase - 230V
10 hp
Stop Time - Minimum
0 sec
Output Power @ Three-Phase - 208V
10 hp
Output Power @ Three-Phase - 480V
20 hp

Dimensions

Width
2.66 in
Height
6.87 in
Depth
5.89 in
Overall Width
2.66 in
Overall Height
7.36 in
Overall Depth
6.5 in

Description

Soft Start, Input Voltage 600V AC, Output Current 37 A, Output Voltage 600V AC, 10 hp @ 3 Phase, 200V AC, 10 hp @ 3 Phase, 240V AC, 20 hp @ 3 Phase, 480V AC, 30 hp @ 3 Phase, 575V AC, Control Voltage 24V DC, NEMA 1
