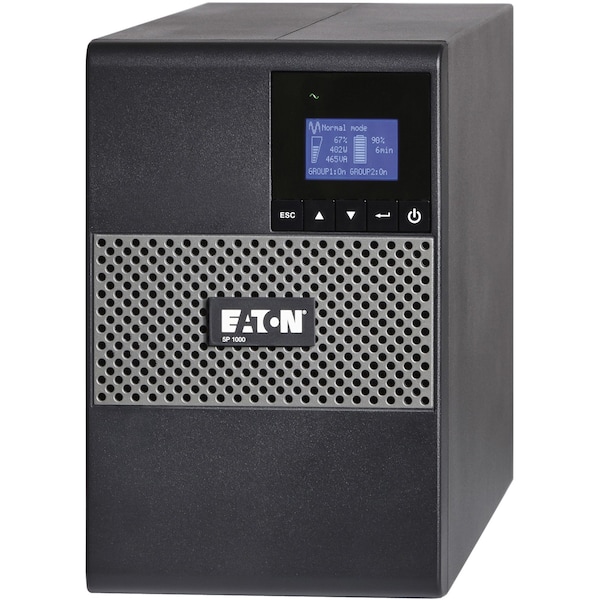

Eaton UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC 5P1000 - main

UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # 5P1000

  • Zoro # G0495252

product price: $643.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Tower
Wattage
770 W
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5P1000
Zoro #
G0495252
UPC #
743172042996
Country of Origin
Unknown

Dimensions

Width
13.6 in
Product Height
9.1 in
Product Length/Depth
13.6 in
Input Cord Length
6 ft

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Tower
Wattage
770 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
12 min/5 min
Number of Outlets
8
NEMA Receptacle Configuration
(8) 5-15R
Housing Color
Black, Silver
Battery Type
Sealed Lead Acid (SLA)
Standards
IEC 62040-2 C1-C2 / EN 55024 / CISPR22 Class B / FCC part 15 Class B
Form factor
Tower
Package Contents
5P UPS|User manual CD|Intelligent Power Software Suite CD|Quick start guide|USB cable|RS-232 serial cable
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Efficiency
0.97
Battery replacement
User replaceable
Software Compatibility
Eaton Intelligent Power Manager (included)
Input voltage range
89-151 Vac (adjustable to 70-153 Vac)
Nominal Frequency
50-60 Hz
Input Power Factor
0.77
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Relative Humidity
0-90% non-condensing
BTU Rating
Online: 106, Battery 500
Output Voltage Range
102-132 Vac
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
Input connection
5-15P
Temperature range
0° to 35°C (32° to 95°F)
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Altitude
Up to 10,000 ft (3000m) without de-rating
Noise level
<45 dB at 1 meter
