  11. UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC

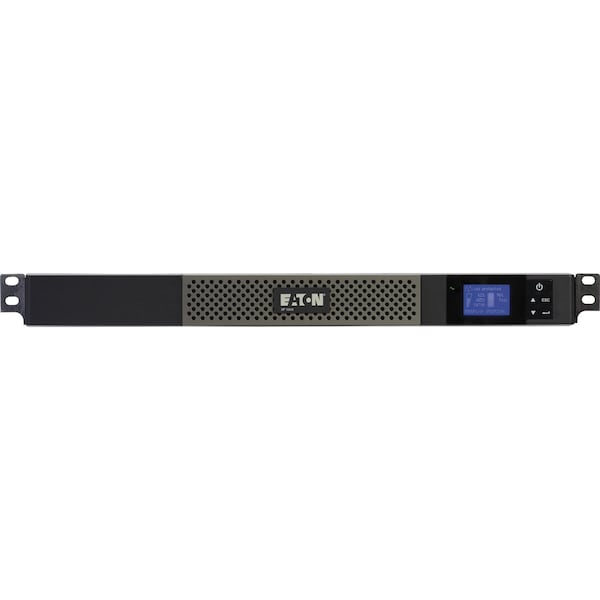

Eaton UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC 5P1000R - main

UPS System, 1000VA, Line Interactive, Out: 120V AC In: 120V AC

  • Mfr # 5P1000R

  • Zoro # G0480266

product price: $1,015.99
/ea
Free Shipping & Returns

Key Features

UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Rack
Wattage
770 W
Input Voltage
120V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5P1000R
Zoro #
G0480266
UPC #
743172043054
Country of Origin
Unknown

Dimensions

Width
20 in
Product Length/Depth
20 in
Input Cord Length
6 ft
Rack size
1U
Product Height
1.7 in

Details

Item
UPS System
UPS Type
Line Interactive
Power Rating
1000VA
Mounting
Rack
Wattage
770 W
Input Voltage
120V AC
Output Voltage
120V AC
Backup Time (Half/Full Load)
12 min/5 min
Number of Outlets
5
Battery Type
Sealed Lead Acid (SLA)
NEMA Receptacle Configuration
(5) 5-15R
Housing Color
Black, Silver
Standards
cULus Listed
Input Frequency Range
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40-70 Hz in low-sensitivity mode
Temperature range
0° to 35°C (32° to 95°F)
Nominal Frequency
50-60 Hz
BTU Rating
Online: 106, Battery 500
Noise level
<45 dB at 1 meter
Input Power Factor
0.77
Battery replacement
User replaceable
Efficiency
0.97
Relative Humidity
0-90% non-condensing
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
Output Voltage Range
102-132 Vac
Rack Mounting Kit
Yes
Altitude
Up to 10,000 ft (3000m) without de-rating
Input connection
5-15P
Expansion Slots
One slot; Gigabit Network Card (Network-M2) is optional
Extended Battery Capability
None; See Eaton 5PX UPS for extended runtimes options
Compliances
CE Marked
Input voltage range
89-151 Vac (adjustable to 70-153 Vac)
Software Compatibility
Eaton Intelligent Power Manager (included)
Package Contents
5P UPS|User manual CD|Intelligent Power Software Suite CD|Quick start guide|USB cable|RS-232 serial cable|4-post rail kit
Form factor
Rack
Communication
RS-232 (RJ45) ports; USB port as standard (HID). 6-foot RS-232 and USB cables included

Description

Eaton 5P 1000VA 770W 120V Line-Interactive UPS, 5-15P, 5x 5-15R Outlets, True Sine Wave, Cybersecure Network Card Option, 1U - 1U Rack-mountable - 5 Minute Stand-by - 110 V AC Input - 132 V AC Output - 5 x NEMA 5-15R

Documents & Resources

Restrictions

This item has been restricted from sale in the following states: CA
