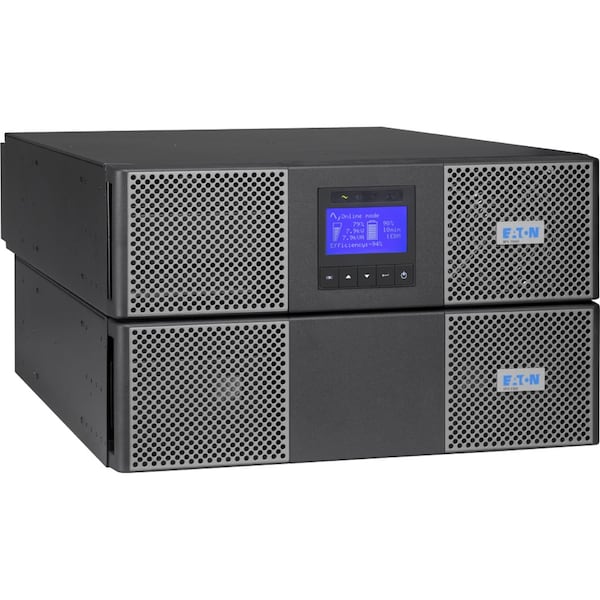

Eaton UPS System, 11kVA, Online/Double Conversion, Out: 208V In: 208V 9PX11K - main

UPS System, 11kVA, Online/Double Conversion, Out: 208V In: 208V

  • Mfr # 9PX11K

  • Zoro # G5266442

product price: $10,179.99
/ea
Item requires special delivery charges. A $185.00 per item surcharge will be applied.

Key Features

UPS Type
Online/Double Conversion
Power Rating
11kVA
Mounting
Rack/Tower
Wattage
10 kW
Input Voltage
208V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9PX11K
Zoro #
G5266442
UPC #
743172043511
Country of Origin
Unknown

Dimensions

Width
30 in
Product Height
10.2 in
Rack size
6U
Product Length/Depth
30 in

Details

Item
UPS System
UPS Type
Online/Double Conversion
Power Rating
11kVA
Mounting
Rack/Tower
Wattage
10 kW
Input Voltage
208V
Output Voltage
208V
Backup Time (Half/Full Load)
10 min/3 min
Outlet Type
Hardwired
Number of Outlets
3
Standards
cULus Listed
NEMA Receptacle Configuration
(3) L6-30R
Battery Type
Sealed Lead Acid (SLA)
Housing Color
Black, Silver
Battery replacement
Hot-swappable internal batteries and extended battery modules (EBMs)
Output Power Factor
0.91
Includes network card
Yes
Software Compatibility
Intelligent Power Software Suite
Package Contents
9PX11KPM 11 kVA 3U UPS power module|9PXEBM240RT 3U extended battery module|MBP11K208 rear-mount maintenance bypass|Gigabit Network Card (Network-M2)|4-post rail kit|User manual|Quick start guide|Tower pedestals|Intelligent Power Software Suite CD|RS-232 serial cable|USB cable|Cable gland for hardwire connection|Phillips head screw driver
Internal bypass
Yes
Compliances
CE Marked
Altitude
<1000m for nominal power, 10% power degrading every 1000m (up to 3000m)
Temperature range
0° to 40°C (32° to 104°F)
Battery management
ABM technology (3-stage charging extends battery service life by 50% and provides advance warning for battery replacement)
VA rating
11 kVA
Output Waveform
True sine wave
User interface
Graphical display, 5-button programmable menu
Form factor
Rack/tower
Input Power Factor
>0.99 typical
Efficiency
0.94
Input connection
Hardwired
Input Frequency Range
60 Hz: 50 to 70 Hz, 50 Hz: 40 to 60 Hz
Relative Humidity
0-95% non-condensing
BTU Rating
Online: 1920, Battery: 2900
Ethernet Interface
Yes
Communication
Web/SNMP in MiniSlot expansion port + 1 USB port + 1 serial RS232 port + 1 mini-terminal block for remote ON/OFF + 1 mini-terminal block for remote power off + 1 mini-terminal block for output relay Communication slot
Expansion Slots
(1) Mini-Slot (MS) expansion port with Gigabit Network Card (NETWORK-M2) included
Rack Mounting Kit
Yes
Noise level
<45 dB at 1 meter
Extended Battery Capability
Add up to 5 extended battery modules (EBM). Part number 9PXEBM240RT. Add up to 12 EBMs with 240V supercharger module SC240RT.
