  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

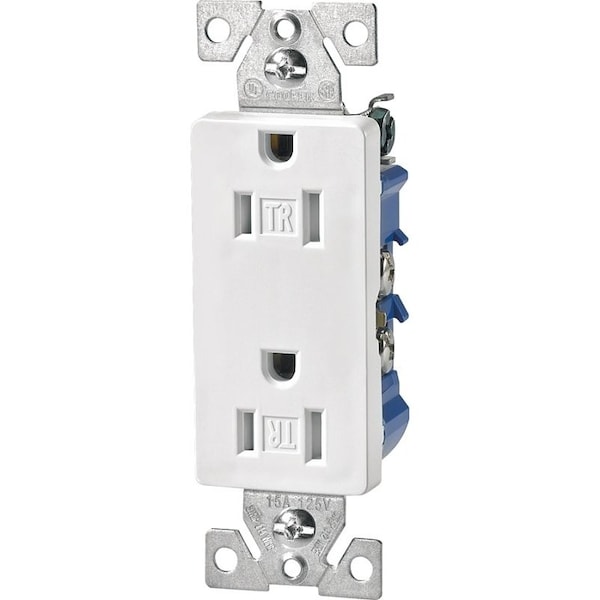

Eaton Wiring Devices Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded TR1107W - main
Shop EATON WIRING DEVICES

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # TR1107W

  • Zoro # G307497784

product price:  $5.59
/ea
Sold in multiples of 2 for $11.18

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TR1107W
Zoro #
G307497784
UPC #
32664666445
Country of Origin
United States

Dimensions

Product Width
.69 IN
Product Length/Depth
1.3 IN
Product Height
3.81 IN

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
NOM, cULus Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Certifications
cULus Listed

Description

Receptacle is tamper resistant with a UL Listed shutter system and impactresistant thermoplastic face and back body that is virtually unbreakable The 2008 National Electrical Code NEC states that Effective January 1, 2008, all receptacles installed in new dwelling units must be tamperresistant Features a wire stripper for number 14 and number 12 wire, extra long and wide mounting straps and tricombo screws that accept slotted, Phillips and Robertsonhead tools Terminal screws are backed out and ready to wire Sidewire terminals accept up to number 10 solid or stranded wire Push in terminals accept number 14 solid wire Screwcatch feature speeds wall plate installation 15 amp, 125 volt NEMA 515R UL, cULus Listed
