  6. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

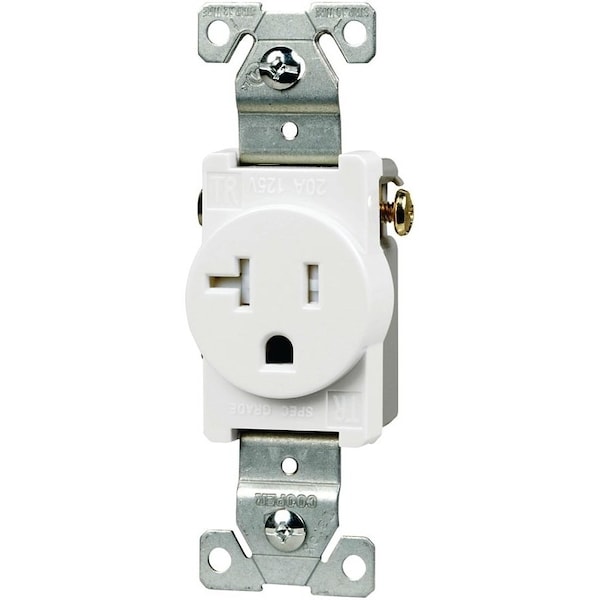

Eaton Wiring Devices Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded TR1877W-BXSP - main
Shop EATON WIRING DEVICES

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # TR1877W-BXSP

  • Zoro # G808276734

product price:  $10.59
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TR1877W-BXSP
Zoro #
G808276734
UPC #
32664750236
Country of Origin
China

Dimensions

Length
1.3 IN
Height
4.19 IN
Width
.87 IN

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Standards
NOM, cULus Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
Mounting Type
Flush
Material
PVC
Connection Type
Screw
Style Type
Single
Contact Material
Brass
Design Type
Receptacle
Number Of Wires
Three-wire

Description

Meets all UL 498 requirements Triple wire line contacts provide excellent longterm plug retention Arcresistant thermostat face Side wire terminals accept up to 10 solid or stranded wire Terminal screws backed out Tamperresistant receptacles have a UL listed shutter system 20 A, 125 V
